DragonPlate's 1" Modular Square Tube Connectors are designed to connect 1" ID square carbon fiber tubes, enabling the creation of lightweight, rigid, and modular structures. These connectors allow users to assemble longer tubes and complex frameworks that can be easily disassembled and reconfigured for various applications.
All DragonPlate 1" Modular Square Tube Connectors are manufactured from anodized aluminum, providing durability and corrosion resistance for long-lasting performance.
The connectors are adhesively bonded into the ends of DragonPlate's 1" ID square carbon fiber tubes using an epoxy. DragonPlate recommends using Scotch-Weld 2216 adhesive for optimal strength and reliability.
The available connector types include Modular Cubes (3-way, 4-way, 5-way, 6-way), Threaded End Connectors (short, multi-threaded, standard), Ball Joint Nut Lock, and Universal Utility Adapter. Each connector is designed for specific structural configurations and assembly needs.
Most DragonPlate 1" Modular Square Tube Connectors use a 1/4-20 thread size, which is standard for many structural and assembly applications.
Yes, all connectors listed on this page are specifically designed to fit DragonPlate's 1" ID square carbon fiber tubes, ensuring a precise and secure connection for modular assemblies.
Technical documentation and downloadable CAD models for DragonPlate's connectors are available at dragonplate.com/cad-models. These resources help with design integration and project planning.
Prices for DragonPlate's 1" Modular Square Tube Connectors range from approximately $13.70 to $24.86, depending on the connector type and configuration. For example, the 1" Modular 6-Way Cube starts at $14.01, while the 1" Short Square Threaded End Connector is priced at $24.86.
DragonPlate lightweight tube connectors provide an easy and robust method for connecting our 1" ID square carbon fiber tubes together to form lightweight rigid structures. Using these aluminum connectors, our 1" carbon fiber tubes can be connected to form much longer disassembleable tubes and structures. The connectors are adhesively bonded into the ends of the carbon fiber tubes using an epoxy. We recommend Scotch-Weld 2216 adhesive.
Click here to learn more about our Modular Carbon Fiber Tube Connectors.
SKU | DESCRIPTION | THREAD SIZE | MATERIAL | PRICE | ||
 FDPCK-MC-CUBE | 1" Modular 6-Way Cube | 1/4-20 | Anodized Aluminum | From $14.01 | ||

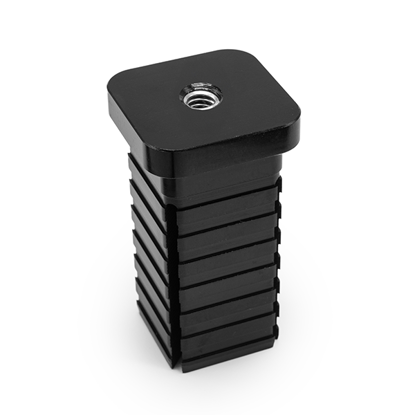

 FDPCK-MCS1-S-END-THRD__ | 1" Short Square Threaded End Connector | 1/4-20 | Anodized Aluminum | $24.86 | ||
 FDPCK-MCS1-END-THRD-5 | 1" Square Multi-Threaded End Connector | 1/4-20 | Anodized Aluminum | $24.50 | ||

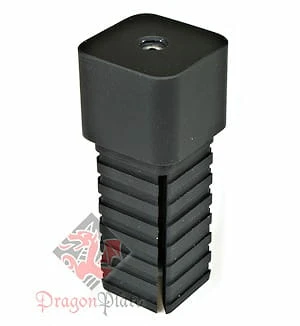

 FDPCK-MCS1-END-THRD | 1" Square Threaded End Connector | 1/4-20 | Anodized Aluminum | $15.75 | ||
 FDPCK-MC-CUBE-CSNK | 1” Modular 3-Way Cube | 1/4-20 | Anodized Aluminum | From $15.11 | ||
 FDPCK-MC1-4WCUBE | 1” Modular 4-Way Cube | 1/4-20 | Anodized Aluminum | $16.24 | ||
 FDPCK-MC1-5WCUBE | 1” Modular 5-Way Cube | 1/4-20 | Anodized Aluminum | $13.97 | ||
 FDPCK-MC1-NLBJ | Ball Joint, Nut Lock, 1/4-20 | 1/4-20 | Anodized Aluminum | From $20.90 | ||
 FDPCK-MC-UTILITYADPTR | Universal Utility Adapter | - | Anodized Aluminum | From $13.70 |
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
