Frequently Asked Questions
Product Information: Roll Wrapped Twill Finish Round Carbon Fiber Tubes
What are Roll Wrapped Twill Finish Round Carbon Fiber Tubes?
Roll Wrapped Twill Finish Round Carbon Fiber Tubes from DragonPlate are fabricated from unidirectional carbon fiber with a twill outer layer. The unidirectional layers are oriented to provide high bending stiffness and axial strength, while the woven twill outer layer adds bias support and an attractive appearance. These tubes are ideal for lightweight frames, structures, tubular vessels, poles, and column supports where both low weight and high stiffness are essential, and appearance is also important. Note: For applications requiring non-gloss or matte finishes, alternative products may be more suitable.
What sizes and wall thicknesses are available for Roll Wrapped Twill Finish Round Tubes?
These tubes are available in a range of inner diameters (e.g., 0.187", 0.25", 0.313", 0.375", 0.438", 0.5", 0.625"), lengths (24", 48", 72"), and wall thicknesses (0.03", 0.0625", 0.0937", 0.125"). Some sizes offer multiple wall thickness options. Note: Not all diameter and wall thickness combinations are available; check the product table for specific SKUs and availability.
What is the price range for Roll Wrapped Twill Finish Round Tubes?
Pricing for Roll Wrapped Twill Finish Round Tubes varies by size and length. For example, a 0.187" ID x 24" tube (thin wall, gloss finish) is $44.57, while a 0.625" ID x 72" tube (gloss finish) is $106.22. Some sizes are available "from" a base price depending on wall thickness. Note: Prices are subject to change and do not include shipping or taxes.
What finish is used on these tubes?
Roll Wrapped Twill Finish Round Tubes are fabricated from prepreg fabrics and cello wrapped for a gloss finish. The twill weave outer layer provides both bias support and an attractive, high-gloss appearance. Note: If a matte or textured finish is required, consider other DragonPlate tube options.
What are the main applications for Roll Wrapped Twill Finish Round Tubes?
These tubes are ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any application where low weight, high stiffness, and visual appearance are important. They are commonly used in aerospace, robotics, industrial automation, and custom fabrication projects. Note: For applications requiring flame retardancy or high-temperature resistance, specialized DragonPlate tubes may be more appropriate.
Features & Capabilities
What are the key performance characteristics of DragonPlate's carbon fiber tubes?
DragonPlate's carbon fiber tubes, including the Roll Wrapped Twill Finish Round Tubes, are engineered for optimal strength-to-weight ratio, providing high bending stiffness and axial strength. They are lightweight, strong, and highly resistant to corrosion, temperature extremes, and UV exposure. Note: While these tubes offer excellent performance, for applications requiring biocompatibility or radiolucency, consult DragonPlate for specialized materials.
Can I get custom sizes or modifications for Roll Wrapped Twill Finish Round Tubes?
Yes, DragonPlate offers custom fabrication services, including CNC cutting, custom sheet sizes, and specialized laminate schedules. Customers can request tailored solutions to meet specific performance and design requirements. Note: Custom orders may have longer lead times and minimum order quantities; contact DragonPlate for details.
Are technical specifications and CAD models available for these tubes?
Yes, technical specifications and downloadable CAD models for DragonPlate tubes are available at dragonplate.com/cad-models. Detailed weights and specs can be found at dragonplate.com/dragonplate-weights-specs. Note: Some technical documentation may require registration or direct inquiry.
Pricing & Ordering
How do I order Roll Wrapped Twill Finish Round Tubes, and what payment methods are accepted?
Orders can be placed directly on the DragonPlate website by selecting the desired SKU and adding it to your cart. Payment methods accepted include major credit cards. For bulk or custom orders, contact DragonPlate directly at service@dragonplate.com or call 315-252-2559. Note: International orders may have additional requirements or restrictions.
What is the typical lead time for standard and custom tube orders?
Standard sizes are typically in stock and can ship quickly. Custom orders may require additional lead time depending on complexity and current production schedules. DragonPlate maintains a stocked inventory to minimize delays, but for precise lead times, contact customer service. Note: Lead times may vary during periods of high demand or for highly customized requests.
Technical Requirements & Support
What technical documentation is available for Roll Wrapped Twill Finish Round Tubes?
DragonPlate provides a range of technical documentation, including product catalogs, CAD models, and detailed weights and specs. Relevant resources include the Weights and Specs Page and the CAD Models Download Page. For additional technical questions, contact DragonPlate support. Note: Some documentation may be specific to product families rather than individual SKUs.
What support is available if I have questions about selecting or using these tubes?
DragonPlate offers comprehensive customer support via phone (315-252-2559), email (service@dragonplate.com), and online resources such as FAQs and technical guides. The team can assist with product selection, technical questions, and custom requests. Note: For highly specialized engineering support, additional consultation may be required.
Compliance & Quality
Are DragonPlate tubes manufactured to any quality standards?
Yes, all DragonPlate products are manufactured under ISO 9001:2015 quality standards at their facility in Elbridge, New York. This certification ensures consistent quality and reliability. Note: For applications requiring additional certifications (e.g., medical or defense), contact DragonPlate for details.
What compliance or security certifications does DragonPlate hold?
DragonPlate has completed a CMMC Level 1 Self-Assessment (submitted to SPRS) and a NIST SP 800-171 Self-Assessment to meet DFARS 252.204-7012 requirements. The company is actively advancing its cybersecurity program to meet CMMC Level 2 requirements. Note: Detailed limitations not publicly documented; ask sales for specifics if your application requires additional compliance.
Use Cases & Industries
Which industries commonly use Roll Wrapped Twill Finish Round Tubes?
Industries such as aerospace, robotics, industrial automation, research institutions, and custom fabrication frequently use these tubes for their high strength-to-weight ratio and visual appeal. Case studies include applications in drone technology, wall-climbing robots, and carbon fiber rockets. Note: For marine defense or medical applications, specialized DragonPlate products may be required.
Can you share examples of successful projects using DragonPlate tubes?
Yes, DragonPlate tubes have been used in projects such as the development of composite chassis for wall-climbing robots (in collaboration with International Climbing Machines), drone test bed systems (with Eureka Dynamics), and carbon fiber rockets for student organizations. These case studies demonstrate measurable benefits like weight reduction, improved performance, and cost savings. Note: Specific customer names are not always disclosed due to confidentiality.
Pain Points & Limitations
What common challenges do customers face when working with carbon fiber tubes, and how does DragonPlate address them?
Customers often face challenges such as difficulty cutting and machining carbon fiber due to its abrasive nature, joining tubes without welding or specialty bonding, and handling dust and safety concerns. DragonPlate addresses these by offering CNC cutting services, modular connector systems (ModCon), and emphasizing proper safety measures. Note: For highly specialized joining or machining needs, additional consultation may be required.

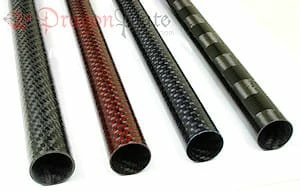

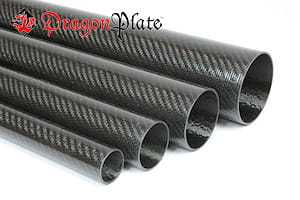

This beautiful carbon fiber tubing is fabricated from unidirectional carbon fiber with a twill outer layer. The unidirectional layers are oriented to provide high bending stiffness and axial strength. The woven twill outer layer provides a bias support layer in addition to an attractive appearance. This product is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other application where low weight and high stiffness are essential and appearance is also important.
Fabricated from prepreg fabrics and cello wrapped for a gloss finish. Longer length tubes have options for outer layer and high modulus unidirectional fabrics.
