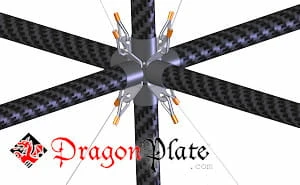

Wire bracing accessories are designed to be used with all sizes of DragonPlate modular connectors. They enable the creation of lightweight, complex carbon fiber structures and space frames by providing secure bracing and reinforcement. These accessories help maintain structural integrity while minimizing weight, making them ideal for advanced engineering applications.
The available wire bracing accessories include:
Yes, wire bracing accessories are compatible with all sizes of DragonPlate modular connectors. This allows users to integrate these accessories into a wide range of carbon fiber structures, regardless of connector size, for enhanced bracing and stability.

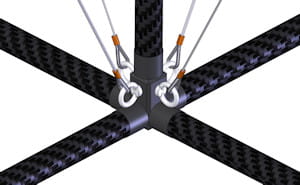

The Eye Bolt for Modular Connectors is available in a 1/4"-20 thread size. Other accessories, such as wire cables, tangs, crimp sleeves, and thimbles, do not require a specific thread size and are designed for universal compatibility with DragonPlate modular connectors.
Technical specifications for each wire bracing accessory, including material, thread size, and price, are listed on the product page. For CAD models and additional technical documentation, you can visit the DragonPlate CAD models page at https://dragonplate.com/cad-models.
Wire bracing accessories can be used with all sizes of our modular connectors to create lightweight, complex carbon fiber structures and space frames.
SKU | DESCRIPTION | THREAD SIZE | MATERIAL | PRICE | ||
 RM-MC-SS-EYEBOLT1/4-20 | Eye Bolt for Modular Connectors - 1/4"-20 | 1/4-20 | Stainless Steel | $4.75 | ||
 RM-MC-SS-CABLE.063 | Stainless Steel Wire Cable - 1/16" Diameter | NA | Stainless Steel | $0.25 | ||
 RM-MC-SWAGE-TOOL-2 | Swage Crimping Tool | NA | Stainless Steel | $62.00 | ||

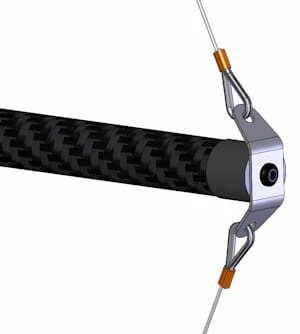

 FDPCK-MC-TANG-1 | Tang - Double 45° | NA | Stainless Steel | $11.50 | ||
 FDPCK-MC-TANG-3 | Tang - Opposing 45° | NA | Stainless Steel | $11.50 | ||
 FDPCK-MC-TANG-2 | Tang - Single 45° | NA | Stainless Steel | $11.50 | ||
 RMUNIV-TANG-BLNK.063 | Tang - Straight | NA | Stainless Steel | $4.25 | ||
 RM-MC-CRIMP-SLEEVE-2 | Wire Crimp Sleeves for 1/16" Steel Cable | NA | Aluminum | $0.25 | ||
 RM-MC-THIMBLE-AN100-3 | Wire Thimble | NA | Aluminum | $0.40 |
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
