Carbon Fiber D-Tube
Patented #8962956Carbon Fiber D-Tube Neck Beam™
The Ultimate inGuitar Neck Bracing!

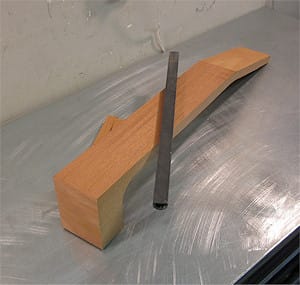

The Carbon Fiber D-Tube Neck Beam™ has been specifically designed to stabilize instrument necks due to its unique D-Tube structure. The Carbon Fiber D-Tube Neck Beam significantly increases both bending and torsional stiffness and weighs less than the removed wood! Builders also say that the D-Tube significantly improved the tone of their instrument.
The D-Tube Neck Beam is available in 3/4" in both straight and tapered versions and 1/2" straight to fit virtually all necks. The 3/4" tapered version is designed to be used on thin necks while the 1/2" straight is designed for smaller necks such as a mandolin.

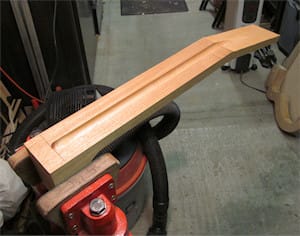

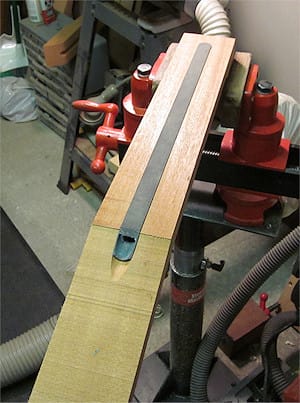

Installation is quick and easy. Simply cut a groove in the neck using a 3/4" or 1/2" core box router bit and bond the beam into the neck. The straight beams require a groove of constant depth. For the tapered beam the groove is cut shallower at the head. The reduced depth of the beam near the head makes it ideal for thin necks.
The D-Tube neck beam replaces the typical approach of truss rod and carbon fiber reinforcement beams with a one piece insert. Cutting the groove for the d-tube is a much simpler operation and requires less labor than fitting a truss rod and carbon fiber reinforcement strips.
Learn more about other builders experience installing the the D-Tube. >>
Guitar
3/4", 16" Straight Length
3/4", 20" Straight Length
3/4", 20" Tapered Length
Bass Guitar
3/4", 20" Straight Length
Double Bass
3/4", 20" Straight Length
Carbon Fiber D-Tube Cradle
Carbon Fiber D-Tube Tee
Mandolin
1/2", 16" Straight Length
Violin
1/2", 6" Straight Length
SKU | DESCRIPTION | MAX TEMPERATURE | FIBER MODULUS | PRICE | ||
 FA-STR*D.75-CRADLE | Carbon Fiber Reinforcement D-Tube Cradle - 0.75" | 140 F | Standard (33 Msi) | $75.00 | ||
 FA-STR*D.75-TCRADLE | Carbon Fiber Reinforcement D-Tube Tee - 0.75" | 140 F | Standard (33 Msi) | $100.00 | ||
 FA-STR*D*.50x.39x6 | Carbon Fiber Straight D-Tube .5" x .39" x 6" | 140 F | Standard (33 Msi) | $40.00 | ||
 FA-STR*D*.50x.45x16 | Carbon Fiber Straight D-Tube .5" x .45" x 16" | 140 F | Standard (33 Msi) | $75.00 | ||
 FA-STR*D*.75x.50x16 | Carbon Fiber Straight D-Tube .75" x .5" x 16" | 140 F | Standard (33 Msi) | $85.00 | ||
 FA-STR*D*.75x.50x20 | Carbon Fiber Straight D-Tube .75" x .5" x 20" | 140 F | Standard (33 Msi) | $95.00 | ||
 FA-TPR*D*.75x.50x20 | Carbon Fiber Tapered D-Tube .75" x .5" x 20" | 140 F | Standard (33 Msi) | $100.00 |
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
| ||||||||||||||
