Modular Tube Connector Project Examples

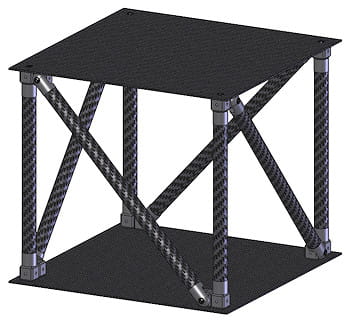

Criss Cross Corner Box Assembly
0.75" Tubes
(8) 0.75" Threaded End Connector w/Stud
(8) 0.75" Single Sided Clevis Connector
1" Tubes
(8) 1" Threaded End Connector w/Stud
(8) 1" Single Sided Clevis Connector
(16) Modular Cube Connector
(2) EconomyPlate Solid Carbon Fiber Sheet ~ 1/8" x 24" x 24"
(8) 1" Long 1/4-20 Button Head Socket Cap Screw
(8) 3/4" Long 1/4-20 Set Screw
(8) 1/2" Long 1/4-20 Button Head Socket Cap Screw

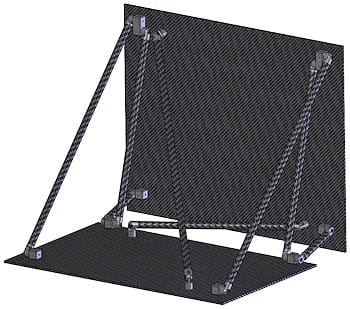

Offset Platform Example
0.75" Tubes
(8) 0.75" Single Sided Clevis Connector
(4) 0.75" Female Clevis Connector
(4) 0.75" Male Clevis Connector
(4) 0.75" End Thread Male Clevis
(4) 0.75" Modular Spacer - 1/4"t
(8) 0.75" Modular Spacer - 5/8"t
(8) Modular Cube Connector
(2) Modular 1X2 Block Connector
(2) EconomyPlate Solid Carbon Fiber Sheet ~ 1/8" x 24" x 24"

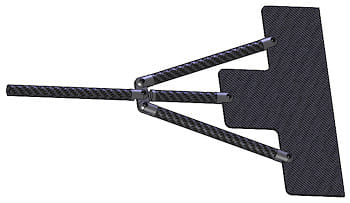

End of Arm Tool

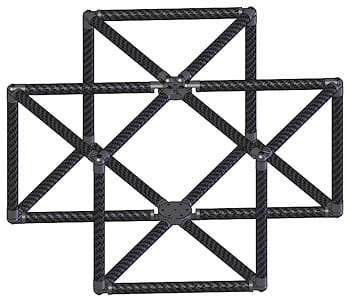

Six-Sided Frame with Puck
1" Tubes
(24) 1" Single Sided Clevis Connector
(12) 1" Threaded End Connector w/Stud
(12) 1" Male Clevis Connector
(2) Wheel Multi-Connector for Modular Connectors

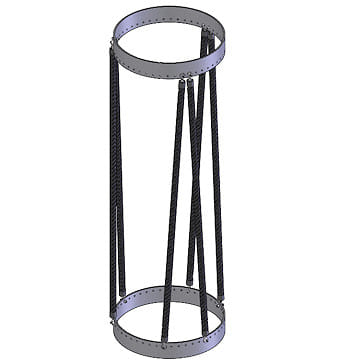

Telescope Structure

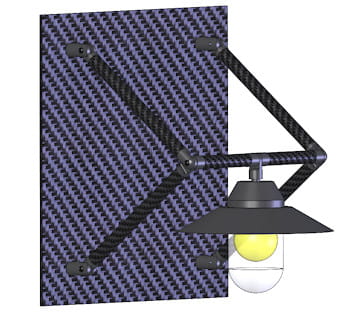

Light Fixture
1" Tubes
(4) 1" End Thread Female Clevis Connector
(6) 1" Male Clevis Connector
(2) 1" Single Sided Clevis Connector
(1) 1" End Thread Male Clevis
(4) 1" Threaded End Connector

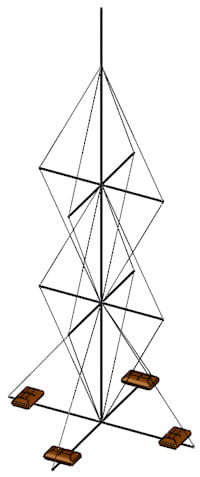

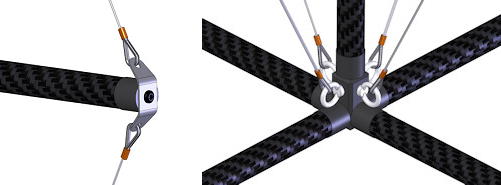

Antenna Structure
Weight: 19lbs.
.jpg)
1" Tubes
(32) 1" Threaded End Connector
(9) Braided Economy Carbon Fiber Round Tubing ~ 1" ID x 48"
(4) Braided Economy Carbon Fiber Round Tubing ~ 1" ID x 72"
(3) Braided Economy Carbon Fiber Round Tubing ~ 1" ID x 96"
(40) Wire Thimble
(40) Wire Crimp Sleeves for 1/16" Steel Cable
165' Stainless Steel Wire Cable - 1/16" Diameter
(8) Eye Bolt for Modular Connectors - 1/4"-20
(18) Tang - Double 45
(6) Modular Cube Connector
(1) Modular 1X2 Block Connector
(8) 1/4"-20 x 3/4" Buttom Head Screw
(18) 1/4"-20 x 1" Set Screws
