    Plain Weave Veneer

    Carbon fiber veneer is all about the appearance of the carbon fiber. In a 3k weave, each strand consists of 3000 individual fibers. The fine appearance of these fibers is what gives carbon fiber its unique look. To produce a really beautiful veneer, you need to clearly show the fibers and the texture of the carbon. DragonPlate veneer is the highest quality, most beautiful veneer on the market.

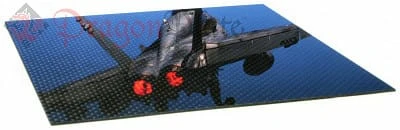

    carbon fiber mirror finish
    Reflection of fighter jet photo in DragonPlate mirror-like finish

    DragonPlate is manufactured by a proprietary process which produces a veneer with a crystal clear face. The veneer comes off the tool with the carbon fiber embedded in this optically clear surface layer with the fiber structure very clearly visible. We do not need to apply a secondary clear coat.



    Cheaper veneers are manufactured with simpler processes that do not produce this deep clear layer, so the carbon fiber appears flattened or crushed, the fine carbon fiber texture is not as well defined, and the surface is not as reflective. Traditional vacuum bagging processes and autoclaving prepreg simply cannot produce this finish.

    As a result of our thick epoxy surface layer, the DragonPlate carbon fiber veneer laminate measures a full .018" thick compared to other paper-thin (.010") veneers. Unlike these cheaper veneers, DragonPlate can be applied over any color without the background showing through. DragonPlate carbon fiber veneer has a richer, deeper, and more lustrious appearance, and can be easily applied.

    DragonPlate Veneer is capable of forming to a cylindrical diameter as small as 1 inch! DragonPlate Carbon Fiber Veneer can be easily cut with shears or heavy scissors and can be sanded to produce a smooth edge. Our carbon fiber veneers come ready to install with contact cement; or for quick and easy installation, we optionally offer a veneer with high quality 3M self adhesive backing, already affixed. Simply peel and stick! See how easy it is to install.

    Each carbon fiber sheet is available in standard gloss, scratch resistant matte, and texture finishes on one side, with a texture finish on the other side, creating an ideal bonding surface.



    Click to Enlarge

    SCRATCH RESISTANT MATTE FINISH!

    Dragonplate veneer is available in a glossy finish and also a scratch resistant matte finish (see picture to left for comparison).



    uv resistant carbon fiber If you’re going to spend money on carbon fiber veneer, why settle for anything less than the best!



    DragonPlate veneer is currently available in stock sizes up to 48 x 96 inches with custom sizes available upon quotation.





    View as Grid List Table
    Sort by
    Display per page

    SKU

    DESCRIPTION

    SHEET SIZE

    SHEET THICKNESS

    PRICE

    FDPLV_-UV*0606

    Plain Weave Carbon Fiber Veneer 6" x 6"

    06" x 06" Veneer $11.39

    FDPLV_-UV*1212

    Plain Weave Carbon Fiber Veneer 12" x 12"

    12" x 12" Veneer $27.56

    FDPLV_-UV*1224

    Plain Weave Carbon Fiber Veneer 12" x 24"

    12" x 24" Veneer $55.13

    FDPLV_-UV*2424

    Plain Weave Carbon Fiber Veneer 24" x 24"

    24" x 24" Veneer $105.75

    FDPLV_-UV*2448

    Plain Weave Carbon Fiber Veneer 24" x 48"

    24" x 48" Veneer $175.00

    FDPLV_-UV*3080

    Plain Weave Carbon Fiber Veneer 30" x 80"

    30" x 80" Veneer $420.00

    FDPLV_-UV*4848

    Plain Weave Carbon Fiber Veneer 48" x 48"

    48" x 48" Veneer $325.00

    FDPLV_-UV*4896

    Plain Weave Carbon Fiber Veneer 48" x 96"

    48" x 96" Veneer $575.00
    Sku: FDPLV_-UV*0606
    Name:

    Plain Weave Carbon Fiber Veneer 6" x 6"

    Sheet Size: 06" x 06"
    Sheet Thickness: Veneer
    Price: $11.39
    Sku: FDPLV_-UV*1212
    Name:

    Plain Weave Carbon Fiber Veneer 12" x 12"

    Sheet Size: 12" x 12"
    Sheet Thickness: Veneer
    Price: $27.56
    Sku: FDPLV_-UV*1224
    Name:

    Plain Weave Carbon Fiber Veneer 12" x 24"

    Sheet Size: 12" x 24"
    Sheet Thickness: Veneer
    Price: $55.13
    Sku: FDPLV_-UV*2424
    Name:

    Plain Weave Carbon Fiber Veneer 24" x 24"

    Sheet Size: 24" x 24"
    Sheet Thickness: Veneer
    Price: $105.75
    Sku: FDPLV_-UV*2448
    Name:

    Plain Weave Carbon Fiber Veneer 24" x 48"

    Sheet Size: 24" x 48"
    Sheet Thickness: Veneer
    Price: $175.00
    Sku: FDPLV_-UV*3080
    Name:

    Plain Weave Carbon Fiber Veneer 30" x 80"

    Sheet Size: 30" x 80"
    Sheet Thickness: Veneer
    Price: $420.00
    Sku: FDPLV_-UV*4848
    Name:

    Plain Weave Carbon Fiber Veneer 48" x 48"

    Sheet Size: 48" x 48"
    Sheet Thickness: Veneer
    Price: $325.00
    Sku: FDPLV_-UV*4896
    Name:

    Plain Weave Carbon Fiber Veneer 48" x 96"

    Sheet Size: 48" x 96"
    Sheet Thickness: Veneer
    Price: $575.00
