    Carbon Fiber 0.5" Pultruded Tube Molded Connectors


    US Patents
    8,528,291 & 8,397,463

    DragonPlate carbon tube connectors incorporate universal design, allowing the user to create extremely light-weight, light-duty structures with a large variety of angles and connections. A separate diagonal connector bonded to the end of a carbon tube can be aligned at any angle, allowing for the creation of unique and custom designed structures.

    DragonPlate carbon tube connectors are designed to be used specifically with our .5" pultruded tubes. These connectors are ideal for building light weight, cost effective, and complex structures.

    Download All Carbon Fiber Tube Connector CAD Models

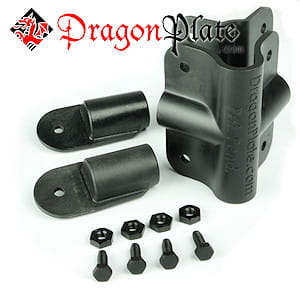

    Carbon fiber Tube Connector KitThese patented connectors are manufactured out of carbon fiber reinforced plastic, creating an optimized cost-to-strength ratio. The connectors are designed with precision ribs to aid in controlling adhesive thicknesses. DragonPlate carbon tube connectors are designed for use with structural epoxies, specifically Scotchweld 2216. Our connectors capture the ends of the pultruded tube; this strengthens the ends of the tube and eliminates risk of splitting the carbon fiber tube. Truss made with Carbon Fiber Tube Connectors

    Nylon screws and nuts are supplied to aid in the bonding process, eliminating the need for large, heavy clamps during assembly. These screws are designed for bonding purposes only, and will not contribute to the strength of the structure. Structural adhesive must be used.

    Users are responsible for the design and test of any structures involving DragonPlate tube connectors and are responsible for determining the safety and suitability of these products for their own purposes. DragonPlate tubes and connectors are not intended or approved for use in aircraft, any man carrying or any other high-risk structures. DragonPlate assumes no responsibility for the use and safety of these connectors. See our terms & conditions for more details.

    Sort by
    Display per page

    SKU

    DESCRIPTION

    THREAD SIZE

    MATERIAL

    PRICE
    4489
    FDPCK-.5-60DEG-SET

    0.5" Carbon Fiber Tube Connector 60°

    NACF Reinforced Plastic$9.50
    4310
    FDPCK-.5-90DEG-SET

    0.5" Carbon Fiber Tube Connector 90°

    NACF Reinforced Plastic$9.50
    4311
    FDPCK-.5-SET

    0.5" Carbon Fiber Tube Connector Kit

    NACF Reinforced Plastic$15.00
    Carbon Fiber Tube Connector Multi-Angle
    FDPCK-.5-DIAG-SET

    0.5" Carbon Fiber Tube Connector Multi-Angle

    NACF Reinforced Plastic$3.50
    4777
    FDPCK-.5-SPLICE-CONNECTOR

    0.5" Clam Shell Pultruded Tube Splice

    NACarbon Fiber$49.95
    4776
    FDPBT-DIA*.5-SPLICE-EXTRN

    0.5" External Pultruded Tube Splice

    NACarbon Fiber$15.50
    Horizontal Tube Flange
    RMPLATECONNECTOR

    0.5" Horizontal Tube Flange

    NACF Reinforced Plastic$3.50
    4493
    FDPCK-.5-IN-LINE-MAC

    0.5" Inline Multi-Angle Tube Connector

    NACarbon Fiber$31.25
    4492
    FDPCK-.5-MTL-ANGL-FLNG

    0.5" Multi-Angle Tube Flange

    NACarbon Fiber$26.25
    Threaded Tube Insert for Carbon Fiber
    RMTHDTUBEINSRT.5

    0.5" Threaded Tube Insert

    1/4-20Aluminum$3.50
    4495
    FDPCK-.5-TUBE-INST-FT

    0.5" Tube Insert with Foot

    1/4-20Aluminum$4.75
    Vertical Tube Flange
    FDPCK-.5-VERT-TUBE-FLNG

    0.5" Vertical Tube Flange

    NACF Reinforced Plastic$2.75
    Sku:FDPCK-.5-60DEG-SET
    4489
    Name:

    0.5" Carbon Fiber Tube Connector 60°

    Thread Size:NA
    Material:CF Reinforced Plastic
    Price:$9.50
    Sku:FDPCK-.5-90DEG-SET
    4310
    Name:

    0.5" Carbon Fiber Tube Connector 90°

    Thread Size:NA
    Material:CF Reinforced Plastic
    Price:$9.50
    Sku:FDPCK-.5-SET
    4311
    Name:

    0.5" Carbon Fiber Tube Connector Kit

    Thread Size:NA
    Material:CF Reinforced Plastic
    Price:$15.00
    Sku:FDPCK-.5-DIAG-SET
    Carbon Fiber Tube Connector Multi-Angle
    Name:

    0.5" Carbon Fiber Tube Connector Multi-Angle

    Thread Size:NA
    Material:CF Reinforced Plastic
    Price:$3.50
    Sku:FDPCK-.5-SPLICE-CONNECTOR
    4777
    Name:

    0.5" Clam Shell Pultruded Tube Splice

    Thread Size:NA
    Material:Carbon Fiber
    Price:$49.95
    Sku:FDPBT-DIA*.5-SPLICE-EXTRN
    4776
    Name:

    0.5" External Pultruded Tube Splice

    Thread Size:NA
    Material:Carbon Fiber
    Price:$15.50
    Sku:RMPLATECONNECTOR
    Horizontal Tube Flange
    Name:

    0.5" Horizontal Tube Flange

    Thread Size:NA
    Material:CF Reinforced Plastic
    Price:$3.50
    Sku:FDPCK-.5-IN-LINE-MAC
    4493
    Name:

    0.5" Inline Multi-Angle Tube Connector

    Thread Size:NA
    Material:Carbon Fiber
    Price:$31.25
    Sku:FDPCK-.5-MTL-ANGL-FLNG
    4492
    Name:

    0.5" Multi-Angle Tube Flange

    Thread Size:NA
    Material:Carbon Fiber
    Price:$26.25
    Sku:RMTHDTUBEINSRT.5
    Threaded Tube Insert for Carbon Fiber
    Name:

    0.5" Threaded Tube Insert

    Thread Size:1/4-20
    Material:Aluminum
    Price:$3.50
    Sku:FDPCK-.5-TUBE-INST-FT
    4495
    Name:

    0.5" Tube Insert with Foot

    Thread Size:1/4-20
    Material:Aluminum
    Price:$4.75
    Sku:FDPCK-.5-VERT-TUBE-FLNG
    Vertical Tube Flange
    Name:

    0.5" Vertical Tube Flange

    Thread Size:NA
    Material:CF Reinforced Plastic
    Price:$2.75
