Our EconomyPlate™ carbon fiber balsa core laminate offers a very high strength and stiffness to weight ratio. End grain balsa provides exceptionally high shear, tensile and compressive strengths. Balsa is also a renewable resource, with typical balsa trees maturing to 90 feet in seven years. The lay-up design is 0°/90° orientation of carbon fiber on each side of a 3.5mm Balsa core center. Two face sheet thickness options of .010" or .030" are available. Face sheet finish is texture on both sides for bonding to other surfaces.
Two free linear saw cuts with full sheet purchase. Contact us for details.

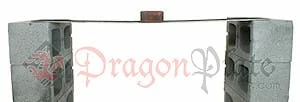

Carbon Fiber Balsa Core Specifications
Test Material | 3.5mm Carbon Fiber Balsa Core |
Material Size | 6" x 42" |
Test Span | 36" |
Material Weight | 0.5 Lbs./foot2 - 1 Lb. Total |
Load Test Weight | ~5 Lbs. |
* Load weight is not meant to show material breaking point. Demonstration to show relative stiffness only.
SKU | DESCRIPTION | SHEET SIZE | CORE MATERIAL | PLY ORIENTATION | PRICE | ||
FDPLBC3.5MM*0606 | DragonPlate Carbon Fiber Balsa Core ~ 3.5MM x 6" x 6" | 06" x 06" | Balsa Wood | Woven 0/90 and ±45 | $37.35 | ||
FDPLBC3.5MM*2424 | DragonPlate Carbon Fiber Balsa Core ~ 3.5MM x 24" x 24" | 24" x 24" | Balsa Wood | Woven 0/90 and ±45 | $317.67 | ||
FDPLBC3.5MM*2448 | DragonPlate Carbon Fiber Balsa Core ~ 3.5MM x 24" x 48" | 24" x 48" | Balsa Wood | Woven 0/90 and ±45 | $555.34 |
| ||||||||||||||||
| ||||||||||||||||
|
