Frequently Asked Questions

Carbon Fiber Roll Wrapped Twill Thick Wall Square Tube ~ 1.0" ID x 1.0" ID x 48"

What are the exact dimensions and specifications of the Carbon Fiber Roll Wrapped Twill Thick Wall Square Tube?

This product is a roll wrapped carbon fiber square tube with a twill finish, featuring an inner dimension (ID) of 1.0" x 1.0" and a length of 48 inches. It is designed with thick walls for enhanced strength and durability.

What material and manufacturing process is used for this tube?

The tube is made from high-performance carbon fiber composite material using a roll wrapping process. The twill weave finish provides both aesthetic appeal and structural integrity. Roll wrapping ensures consistent wall thickness and strength throughout the tube.

What are the key performance benefits of this thick wall square tube?

This tube offers an optimal strength-to-weight ratio, making it suitable for applications requiring high performance with minimal weight. It is highly resistant to corrosion, temperature extremes, and UV exposure, ensuring long-lasting durability in demanding environments. (Source: DragonPlate product performance highlights)

What typical applications is this tube best suited for?

The 1.0" ID x 1.0" ID x 48" thick wall square tube is commonly used in robotics, aerospace, industrial automation, and custom structural assemblies where high strength and low weight are critical. Its thick wall design is ideal for load-bearing and structural support applications.

Can this tube be customized or cut to specific lengths?

Yes, DragonPlate offers CNC cutting and custom fabrication services for this tube. Customers can request custom lengths, specialized laminate schedules, or additional machining to meet their specific project requirements. Explore customization options.

Is technical documentation or CAD models available for this tube?

Technical documentation and downloadable CAD models are available to help customers integrate this tube into their designs. Visit DragonPlate CAD Models for access, and refer to product catalogs for detailed specifications.

Loading...

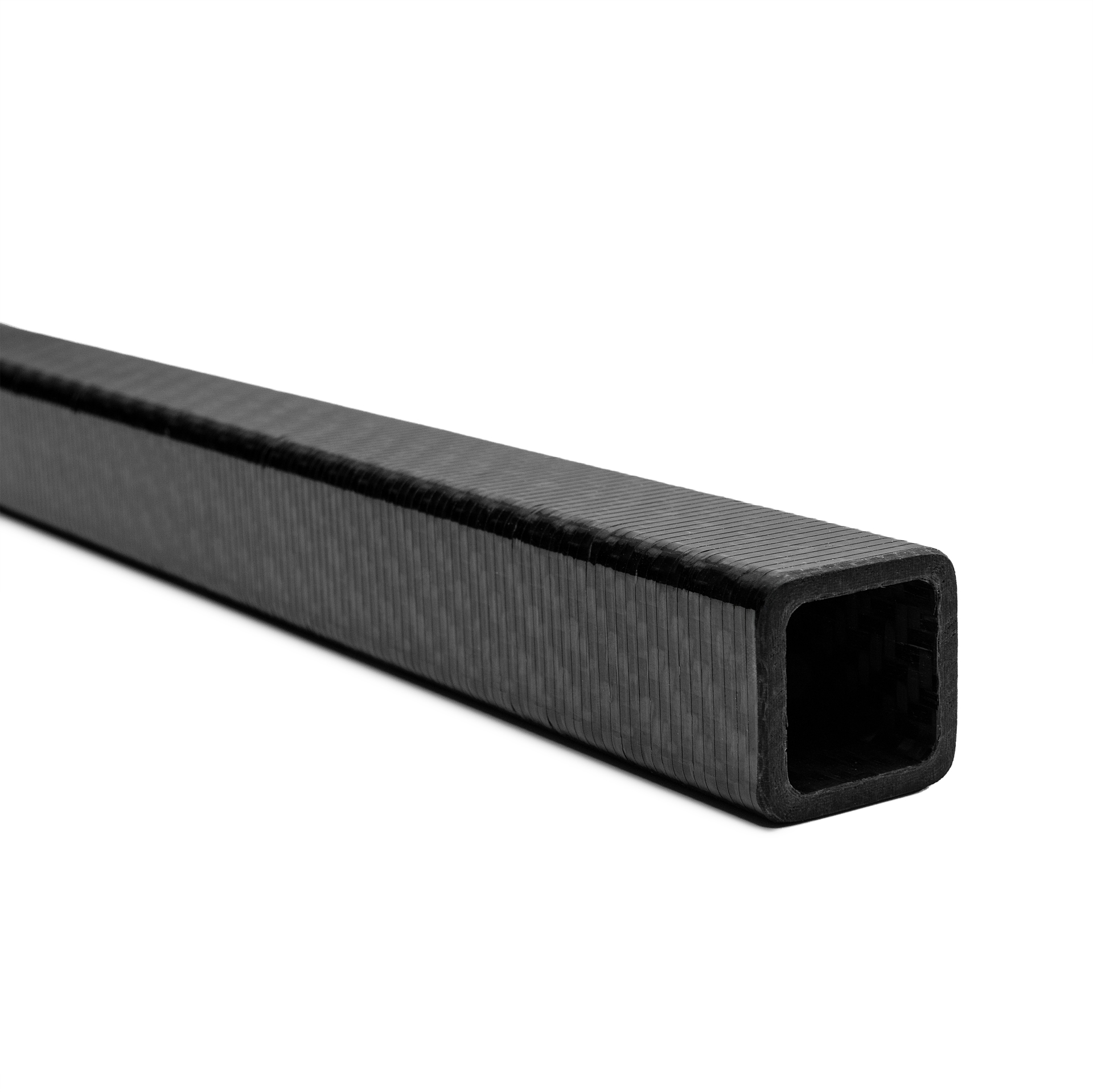

Carbon Fiber Roll Wrapped Twill Thick Wall Square Tube ~ 1.0" ID x 1.0" ID x 48"

$398.87
SKU: FDPTS1.0*1.25*48

Please Allow 5-7 days before this item ships

DragonPlate’s roll-wrapped twill carbon fiber square tubes are manufactured with the uni sandwiched between twill weave layers on the inside and outside surfaces of the tube. This construction provides better support for the uni layer, enhancing toughness and stability, particularly near the tube ends, and interfaces well with our modular connector. Outside finish is gloss.

Carbon fiber tube manufacturers often only include a twill layer on the outside of the tube, as this approach is less costly and easier to make, but provides less support to the inner surface of the uni layer. At DragonPlate, we consider this additional layer of twill to be worth the extra effort, as it yields higher-quality and more robust tubes for our customers.

Roll-wrapped twill finish square tubes are ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other applications where low weight and high stiffness are essential, yet appearance is also important.

DragonPlate’s roll-wrapped twill carbon fiber square tubes are manufactured with the uni sandwiched between twill weave layers on the inside and outside surfaces of the tube. This construction provides better support for the uni layer, enhancing toughness and stability, particularly near the tube ends, and interfaces well with our modular connector. Outside finish is gloss.

Carbon fiber tube manufacturers often only include a twill layer on the outside of the tube, as this approach is less costly and easier to make, but provides less support to the inner surface of the uni layer. At DragonPlate, we consider this additional layer of twill to be worth the extra effort, as it yields higher-quality and more robust tubes for our customers.

Roll-wrapped twill finish square tubes are ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other applications where low weight and high stiffness are essential, yet appearance is also important.

Products specifications
Length 48"
Wall Thickness 0.125"
Shape Square
Inside Dimensions 1.0" x 1.0"
Outside Dimensions 1.25" x 1.25"
Tube Finish Gloss
Ply Orientation Woven 0/90 and UD 0
Max Temperature 250 F
Composition Solid CF (Woven and Uni Directional)
Approx. Weight

1.51 lb

Approx. Density 0.057 lb/in3
