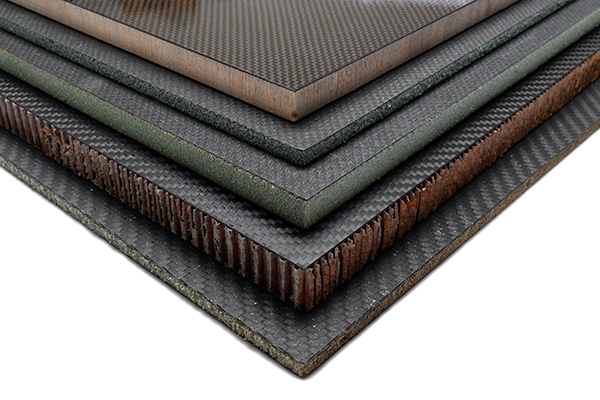

    Carbon Fiber Sandwich Sheets with Core

    carbon fiber sheets with coreDragonPlate offers a variety of carbon fiber sandwich sheets with cores. Available in standard, high modulus and ultra high modulus carbon fiber.

    dragonplate logoComparison Criteria
    Sandwich ProductsStiffness to WeightToughnessCrushabilityMoisture ResistanceSound Absorbency
    Birch CoreBETTERBESTBESTGOODPOOR
    Balsa CoreBETTERGOODBETTERPOORGOOD
    Nomex Honeycomb CoreBESTGOODBETTERBETTERBEST
    Depron Foam CoreBETTERPOORPOORBETTERBETTER
    Airex Foam CoreBESTGOODGOODBETTERBETTER
    Dinvinycell Foam CoreBETTERBETTERBETTERBETTERGOOD
    Last-A-Foam CoreBETTERBETTERBETTERBETTERBETTER
    Dyneema® CoreGOODBESTBESTBESTPOOR
    Kevlar CoreGOODBESTBESTGOODPOOR

    Product Categories

    Carbon Fiber Birch Core

    • Birch Plywood Sandwich Plate
    • Woven CF Fabric Skins (choice available on 24"x48")
    • 0°/90°/±45 CF Orientation Stiffness
    • Front Finish: Gloss/Matte/Texture
    • Back Finish: Texture
    • Sizes up to 24"x48", 1/4" Thick
    • Max Temperature 140F

    Carbon Fiber Prepreg Birch Core

    • Birch Plywood Sandwich Plate
    • Choice of Woven CF Prepreg Fabric Skin
    • High Modulus CF Available
    • 0°/90° CF Orientation Stiffness
    • Front/Back Finish: Satin/Satin
    • Sizes up to 24"x36", 4mm Thick
    • Max Temperature 250F

    Carbon Fiber Balsa Core

    • Exceptionally High Shear, Tensile & Compressive Strengths
    • Woven CF Fabric Skins (choice available on 24"x48")
    • 0°/90°/±45 CF Orientation Stiffness
    • Front Finish: Gloss/Matte/Texture
    • Back Finish: Texture
    • Sizes up to 24"x48", 1/2" Thick
    • Max Temperature 140F

    Carbon Fiber Honeycomb

    • High Strength to Weight Ratio, Heat Resistant Core
    • Woven CF Fabric Skins (choice available on 24"x24" & 24"x36")
    • High Modulus CF Available
    • 0°/90° CF Orientation Stiffness
    • Front/Back Finish: Satin/Satin
    • Sizes up to 24"x36", 3/4" Thick
    • Max Temperature 250F

    Carbon Fiber Foam Core

    • Multiple Foam Core Types Available
    • Woven CF Fabric Skins (choice available on 24"x48")
    • 0°/90°/±45 CF Orientation Stiffness
    • Front Finish: Gloss/Matte/Texture/Satin
    • Back Finish: Texture/Satin
    • Sizes up to 24"x48", 1" Thick
    • Max Temperature 140F/250F

    Carbon Fiber Dyneema® Core Sheets

    • Tough, Impact Resistant Core
    • Woven CF Fabric Skins
    • 0°/90° CF Orientation Stiffness
    • Front/Back Finish: Texture/Texture
    • 24"x48", up to 1/8" Thick
    • Max Temperature 140F

    Carbon Fiber Flax Linen Core Sheets

    • Flax Linen Core Dampens Vibrations
    • Woven CF Fabric Skins
    • 0°/90° CF Orientation Stiffness
    • Finish: Texture/Texture or Satin/Satin
    • Sizes up to 24"x48", 1/8" Thick
    • Max Temperature 140F/250F

    Carbon Fiber Core Trim

    • Covers & Protects Core of Sandwich Sheets
    • Creates Finished Look
    • Manufactured with Woven CF Fabric
    • Finish: Texture
    • Fits 1/4", 3/8", 1/2", 3/4", 1" Sandwich Sheets
    • Max Temperature 140F
    View as Grid List Table
    Sort by
    Display per page

    SKU

    DESCRIPTION

    SHEET SIZE

    CORE MATERIAL

    PLY ORIENTATION

    PRICE

    FDPLAXC7040.25x3_0606

    Airex C70-40 .25" Foam Core - 3 Layer Carbon Fiber 6" x 6"

    06" x 06"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$30.50

    FDPLAXC7040.25x3_1212

    Airex C70-40 .25" Foam Core - 3 Layer Carbon Fiber 12" x 12"

    12" x 12"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$85.25

    FDPLAXC7040.25x3_1224

    Airex C70-40 .25" Foam Core - 3 Layer Carbon Fiber 12" x 24"

    12" x 24"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$164.25

    FDPLAXC7040.25x3_2424

    Airex C70-40 .25" Foam Core - 3 Layer Carbon Fiber 24" x 24"

    24" x 24"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$316.25

    FDPLAXC7040.25x3_2448

    Airex C70-40 .25" Foam Core - 3 Layer Carbon Fiber 24" x 48"

    24" x 48"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$526.00

    FDPLAXC7040.5x3_0606

    Airex C70-40 .5" Foam Core - 3 Layer Carbon Fiber 6" x 6"

    06" x 06"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$30.75

    FDPLAXC7040.5x3_1212

    Airex C70-40 .5" Foam Core - 3 Layer Carbon Fiber 12" x 12"

    12" x 12"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$86.25

    FDPLAXC7040.5x3_1224

    Airex C70-40 .5" Foam Core - 3 Layer Carbon Fiber 12" x 24"

    12" x 24"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$166.50

    FDPLAXC7040.5x3_2424

    Airex C70-40 .5" Foam Core - 3 Layer Carbon Fiber 24" x 24"

    24" x 24"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$320.75

    FDPLAXC7040.5x3_2448

    Airex C70-40 .5" Foam Core - 3 Layer Carbon Fiber 24" x 48"

    24" x 48"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$534.00

    FDPLAXC7040-1x3_0606

    Airex C70-40 1" Foam Core - 3 Layer Carbon Fiber 6" x 6"

    06" x 06"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$31.50

    FDPLAXC7040-1x3_1212

    Airex C70-40 1" Foam Core - 3 Layer Carbon Fiber 12" x 12"

    12" x 12"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$90.00

    FDPLAXC7040-1x3_1224

    Airex C70-40 1" Foam Core - 3 Layer Carbon Fiber 12" x 24"

    12" x 24"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$173.75

    FDPLAXC7040-1x3_2424

    Airex C70-40 1" Foam Core - 3 Layer Carbon Fiber 24" x 24"

    24" x 24"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$335.25

    FDPLAXC7040-1x3_2448

    Airex C70-40 1" Foam Core - 3 Layer Carbon Fiber 24" x 48"

    24" x 48"Gurit PVC40 Foam (Airex)Woven 0/90 and ±45$560.00
    Sku:FDPLAXC7040.25x3_0606
    Name:

    Airex C70-40 .25" Foam Core - 3 Layer Carbon Fiber 6" x 6"

    Sheet Size:06" x 06"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$30.50
    Sku:FDPLAXC7040.25x3_1212
    Name:

    Airex C70-40 .25" Foam Core - 3 Layer Carbon Fiber 12" x 12"

    Sheet Size:12" x 12"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$85.25
    Sku:FDPLAXC7040.25x3_1224
    Name:

    Airex C70-40 .25" Foam Core - 3 Layer Carbon Fiber 12" x 24"

    Sheet Size:12" x 24"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$164.25
    Sku:FDPLAXC7040.25x3_2424
    Name:

    Airex C70-40 .25" Foam Core - 3 Layer Carbon Fiber 24" x 24"

    Sheet Size:24" x 24"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$316.25
    Sku:FDPLAXC7040.25x3_2448
    Name:

    Airex C70-40 .25" Foam Core - 3 Layer Carbon Fiber 24" x 48"

    Sheet Size:24" x 48"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$526.00
    Sku:FDPLAXC7040.5x3_0606
    Name:

    Airex C70-40 .5" Foam Core - 3 Layer Carbon Fiber 6" x 6"

    Sheet Size:06" x 06"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$30.75
    Sku:FDPLAXC7040.5x3_1212
    Name:

    Airex C70-40 .5" Foam Core - 3 Layer Carbon Fiber 12" x 12"

    Sheet Size:12" x 12"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$86.25
    Sku:FDPLAXC7040.5x3_1224
    Name:

    Airex C70-40 .5" Foam Core - 3 Layer Carbon Fiber 12" x 24"

    Sheet Size:12" x 24"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$166.50
    Sku:FDPLAXC7040.5x3_2424
    Name:

    Airex C70-40 .5" Foam Core - 3 Layer Carbon Fiber 24" x 24"

    Sheet Size:24" x 24"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$320.75
    Sku:FDPLAXC7040.5x3_2448
    Name:

    Airex C70-40 .5" Foam Core - 3 Layer Carbon Fiber 24" x 48"

    Sheet Size:24" x 48"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$534.00
    Sku:FDPLAXC7040-1x3_0606
    Name:

    Airex C70-40 1" Foam Core - 3 Layer Carbon Fiber 6" x 6"

    Sheet Size:06" x 06"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$31.50
    Sku:FDPLAXC7040-1x3_1212
    Name:

    Airex C70-40 1" Foam Core - 3 Layer Carbon Fiber 12" x 12"

    Sheet Size:12" x 12"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$90.00
    Sku:FDPLAXC7040-1x3_1224
    Name:

    Airex C70-40 1" Foam Core - 3 Layer Carbon Fiber 12" x 24"

    Sheet Size:12" x 24"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$173.75
    Sku:FDPLAXC7040-1x3_2424
    Name:

    Airex C70-40 1" Foam Core - 3 Layer Carbon Fiber 24" x 24"

    Sheet Size:24" x 24"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$335.25
    Sku:FDPLAXC7040-1x3_2448
    Name:

    Airex C70-40 1" Foam Core - 3 Layer Carbon Fiber 24" x 48"

    Sheet Size:24" x 48"
    Core Material:Gurit PVC40 Foam (Airex)
    Ply Orientation:Woven 0/90 and ±45
    Price:$560.00
