Frequently Asked Questions
Product Information: Carbon Fiber Balsa Core
What is DragonPlate Carbon Fiber Balsa Core and how is it constructed?
DragonPlate Carbon Fiber Balsa Core is a laminate sheet featuring a balsa wood core sandwiched between layers of carbon fiber. The lay-up design is quasi-isotropic, symmetrical, and balanced, with approximately 0.03 inches of carbon fiber on each side of the end grain balsa core. This construction provides a high strength and stiffness to weight ratio. Sheets are available in gloss, matte, or texture finishes on one side, and texture on the other side for bonding to other surfaces. Note: For applications requiring higher temperature resistance or flame retardancy, consider DragonPlate's other core options. Download specifications.
What sheet sizes and thicknesses are available for Carbon Fiber Balsa Core?
DragonPlate Carbon Fiber Balsa Core is available in multiple thicknesses (1/4", 3/8", 1/2", 3.5mm) and sheet sizes (6"x6", 12"x12", 12"x24", 24"x24", 24"x48"). EconomyPlate variants are also offered in select sizes and thicknesses. Custom thicknesses and sizes can be requested by contacting DragonPlate. Note: Availability may vary; check the product page for current inventory. View all sizes.
What are the ply orientations used in Carbon Fiber Balsa Core sheets?
Most DragonPlate Carbon Fiber Balsa Core sheets use woven 0/90 and ±45 ply orientations, providing quasi-isotropic mechanical properties for balanced strength and stiffness. Some EconomyPlate variants use woven 0/90 only. Note: For highly directional strength requirements, consult DragonPlate for custom ply schedules. See technical specs.
Pricing & Ordering
What are the prices for DragonPlate Carbon Fiber Balsa Core sheets?
Pricing varies by sheet size and thickness. For example, a 1/2" x 12" x 12" sheet is $128.10, a 1/2" x 6" x 6" sheet is $41.50, and a 1/2" x 24" x 48" sheet is $740.03. EconomyPlate variants are available at lower prices, such as $38.26 for a 1/2" x 6" x 6" sheet. Prices are listed in US Dollars and do not include shipping, taxes, or handling fees. Note: Prices are subject to change without notice; check the product page for current pricing. See full pricing table.
Are there any discounts or additional charges for Carbon Fiber Balsa Core sheets?
Bulk discounts may be available for larger orders. Buyers are responsible for shipping, freight, taxes, and handling charges, which are calculated based on weight, dimensions, and shipping method. Customization services, such as CNC cutting or special laminate schedules, may incur additional charges. Note: For full details, see the Terms and Conditions.
How can I order custom thicknesses or sizes for Carbon Fiber Balsa Core?
Custom thicknesses and sizes can be requested by contacting DragonPlate directly via contact form or phone at 315-252-2559. Provide your project requirements, and DragonPlate will assist with design, pricing, and lead times. Note: Custom orders may require additional time and incur extra charges.
Features & Capabilities
What are the key performance benefits of Carbon Fiber Balsa Core sheets?
DragonPlate Carbon Fiber Balsa Core sheets offer a very high strength and stiffness to weight ratio. The end grain balsa core provides exceptionally high shear, tensile, and compressive strengths. Carbon fiber layers add durability and environmental resistance. The product is suitable for applications requiring lightweight yet strong structural panels. Note: For extreme environments or specialized regulatory requirements, review technical documentation or consult DragonPlate for alternative core materials. See specifications.
Is balsa wood a sustainable material for core construction?
Balsa is a renewable resource, with typical balsa trees maturing to 90 feet in seven years. This makes it an environmentally friendly option for core construction. Note: Sustainability certifications for specific batches are not documented; inquire for details if required for your project.
What finishes are available for Carbon Fiber Balsa Core sheets?
Sheets are available with gloss, matte, or texture finishes on one side, and texture on the other side for bonding to other surfaces. Note: Custom finishes may be available upon request; contact DragonPlate for options. Learn more about finishes.
Are technical specifications and CAD models available for Carbon Fiber Balsa Core?
Yes, downloadable technical specifications and CAD models are available to help customers integrate Carbon Fiber Balsa Core sheets into their designs. Download specifications and access CAD models. Note: For detailed mechanical properties, refer to the technical documentation or contact DragonPlate for assistance.
Implementation & Support
How easy is it to cut, drill, or bond Carbon Fiber Balsa Core sheets?
DragonPlate Carbon Fiber Balsa Core sheets can be cut, drilled, and bonded using standard tools. Two free linear saw cuts are included with full sheet purchases. For complex shapes or precision requirements, DragonPlate offers CNC cutting services. Note: Proper safety measures should be followed when machining carbon fiber composites. Learn about CNC cutting.
What support channels are available for questions or custom orders?
Customers can contact DragonPlate via contact form, phone (315-252-2559), or email (service@dragonplate.com). Account management features are available online for order tracking and profile updates. Note: Support hours are Monday-Friday, 8:30am – 5:00pm ET.
Certifications & Compliance
Is DragonPlate Carbon Fiber Balsa Core manufactured in an ISO 9001:2015 certified facility?
Yes, DragonPlate products are manufactured in an ISO 9001:2015 certified facility, ensuring high-quality standards and consistent manufacturing processes. Note: Certification applies to the facility; for specific batch traceability, contact DragonPlate.
Use Cases & Limitations
What industries and applications are Carbon Fiber Balsa Core sheets best suited for?
Carbon Fiber Balsa Core sheets are ideal for aerospace, robotics, industrial automation, and other applications requiring lightweight, high-strength structural panels. The high shear, tensile, and compressive strengths of balsa core make it suitable for load-bearing and weight-sensitive designs. Note: For applications requiring flame retardancy or high-temperature resistance, consider DragonPlate's flame-retardant or high-temperature core products.
Are there any limitations or scenarios where Carbon Fiber Balsa Core may not be the best fit?
Carbon Fiber Balsa Core may not be suitable for applications requiring flame retardancy, high-temperature resistance, or specialized regulatory compliance. For these scenarios, DragonPlate offers alternative core materials such as flame-retardant, high-temperature, or honeycomb cores. Detailed limitations are not publicly documented; contact sales for specifics.
Technical Documentation & Resources
Where can I find technical documentation and guides for Carbon Fiber Balsa Core?
Technical specifications for Carbon Fiber Balsa Core are available for download. Additional resources, such as CAD models and guides for carbon fiber design and application, can be accessed online. Download specifications, CAD models, and design guide. Note: For practical application tips, see the Practical Carbon Fiber Applications page.
Our carbon fiber balsa core laminate offers a very high strength and stiffness to weight ratio. End grain balsa provides exceptionally high shear, tensile and compressive strengths. Balsa is also a renewable resource, with typical balsa trees maturing to 90 feet in seven years. The lay-up design is quasi-isotropic, symmetrical, and balanced with approximately 0.03 inches of carbon on each side of the end grain balsa core. Available in gloss, matte or texture on one side and texture on other side for bonding to other surfaces.

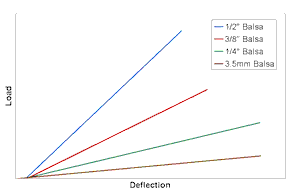

Carbon Fiber Balsa Core Specifications
