    Carbon Fiber Prepreg Ekoa® Flax Linen Core Sheet - 1/8" x 12" x 12"

    $233.96
    SKU: FDPLHPEC04S1212

    Please Allow 10-15 days before this item ships

    DragonPlate carbon fiber Ekoa® core sheets are a natural flax linen fiber pre-impregnated (prepreg) with post-industry, plant-based resin.  Flax linen is a natural fiber, know for its vibration dampening properties. These sheets have twill weave carbon fiber skins and a satin finish on both sides.

    Using with Carbon Fiber

    Ekoa® is engineered to be compatible with carbon fiber. The elongation at fracture of 1.5% and the coefficient of thermal expansion are similar to carbon fiber. When used with carbon fiber as a core (middle layer/s), Ekoa® flax linen, bio-epoxy prepregs, and flax linen dry composite reinforcement fabrics reduce weight and cost, while increase vibration damping properties.

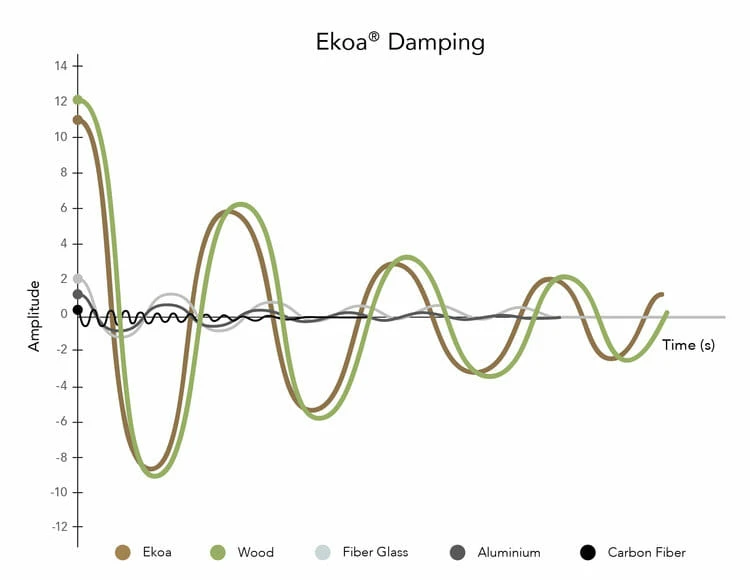

    Vibration Dampening with Ekoa®

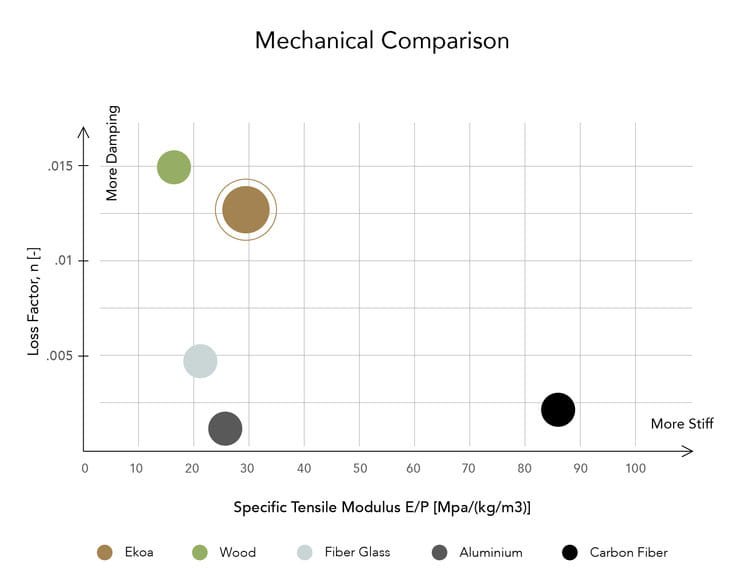

    Ekoa® has outstanding damping properties for an engineering material with a unique stiffness-damping combination. With 20-30 % higher specific stiffness than fiberglass, Ekoa® composites exhibit three times higher damping than carbon and fiberglass.

     Ekoa Vibration Dampening

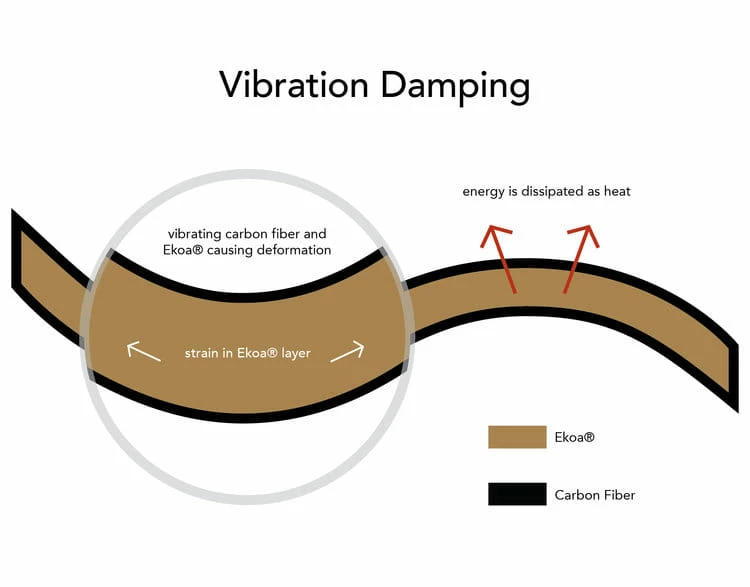

    Ekoa® as Core Layer/s

    Applications requiring the stiffness and strength of carbon—such as a high-performance bicycle frame—can be greatly improved by replacing some carbon plys with Ekoa®. Using the correct quantity of layers and orientation within the hybrid structure will generate constrained-layer damping and enhance the dynamic properties of the structure .

    Standard constrained damping layers are usually made from highly viscoelastic polymers with poor structural properties, making it relatively complicated to integrate during processing and adding a lot of weight to the structure. In comparison, Ekoa® is light, has great structural properties, and can be processed in one-shot with carbon fiber.

    Ekoa Core

    DragonPlate carbon fiber Ekoa® core sheets are a natural flax linen fiber pre-impregnated (prepreg) with post-industry, plant-based resin.  Flax linen is a natural fiber, know for its vibration dampening properties. These sheets have twill weave carbon fiber skins and a satin finish on both sides.

    Using with Carbon Fiber

    Ekoa® is engineered to be compatible with carbon fiber. The elongation at fracture of 1.5% and the coefficient of thermal expansion are similar to carbon fiber. When used with carbon fiber as a core (middle layer/s), Ekoa® flax linen, bio-epoxy prepregs, and flax linen dry composite reinforcement fabrics reduce weight and cost, while increase vibration damping properties.

    Vibration Dampening with Ekoa®

    Ekoa® has outstanding damping properties for an engineering material with a unique stiffness-damping combination. With 20-30 % higher specific stiffness than fiberglass, Ekoa® composites exhibit three times higher damping than carbon and fiberglass.

     Ekoa Vibration Dampening

    Ekoa® as Core Layer/s

    Applications requiring the stiffness and strength of carbon—such as a high-performance bicycle frame—can be greatly improved by replacing some carbon plys with Ekoa®. Using the correct quantity of layers and orientation within the hybrid structure will generate constrained-layer damping and enhance the dynamic properties of the structure .

    Standard constrained damping layers are usually made from highly viscoelastic polymers with poor structural properties, making it relatively complicated to integrate during processing and adding a lot of weight to the structure. In comparison, Ekoa® is light, has great structural properties, and can be processed in one-shot with carbon fiber.

    Ekoa Core

    Products specifications
    Sheet Size 12" x 12"
    Sheet Thickness 1/8"
    Core Material Flax Linen
    Skin Thickness 0.025"
    Ply Orientation Woven 0/90
    Max Temperature 250 F
    Fiber Modulus Standard (33 Msi)
    Finish Satin/Satin
    Composition CF (Woven) and Core
    Approx. Weight 0.941 lb
    Approx. Density 0.0064 lb/in2
