Frequently Asked Questions

Rectangle Tube - 2" x 3" x 72" - 1/16" Wall - Twill/Uni - Standard Mod

What are the key specifications of the Rectangle Tube - 2" x 3" x 72" - 1/16" Wall - Twill/Uni - Standard Mod?

This carbon fiber rectangle tube features an inner dimension of 2 inches by 3 inches, a length of 72 inches, and a wall thickness of 1/16 inch. It is manufactured with a twill/uni finish and is classified as "Standard Mod." These specifications make it suitable for structural applications requiring lightweight strength and rigidity.

What are the performance benefits of this carbon fiber rectangle tube?

The tube offers a superior strength-to-weight ratio, making it ideal for applications where minimizing weight is critical without sacrificing structural integrity. It is highly resistant to corrosion, temperature extremes, and UV exposure, ensuring durability in demanding environments. These attributes are consistent with DragonPlate's carbon fiber materials, which are engineered for high performance and longevity. Learn more about performance analysis.

What types of projects or industries commonly use this rectangle tube?

This tube is suitable for structural applications in industries such as aerospace, robotics, industrial automation, and custom engineering projects. Its combination of lightweight and high strength makes it a preferred choice for frames, supports, and assemblies where performance and durability are essential.

Can this tube be customized or machined for specific requirements?

Yes, DragonPlate offers CNC cutting and custom fabrication services for its carbon fiber tubes, including this rectangle tube. Customers can request custom lengths, specialized laminate schedules, or precision machining to meet unique project needs. Explore customization options.

Is technical documentation or CAD support available for this tube?

Technical documentation and downloadable CAD models are available to assist with design integration and project planning. These resources provide detailed specifications and facilitate seamless incorporation of the tube into engineering projects. Access CAD models.

Loading...
PrevRectangle Tube - 2" x 3" x ...
NextRectangle Tube - 2" x 3" x ...

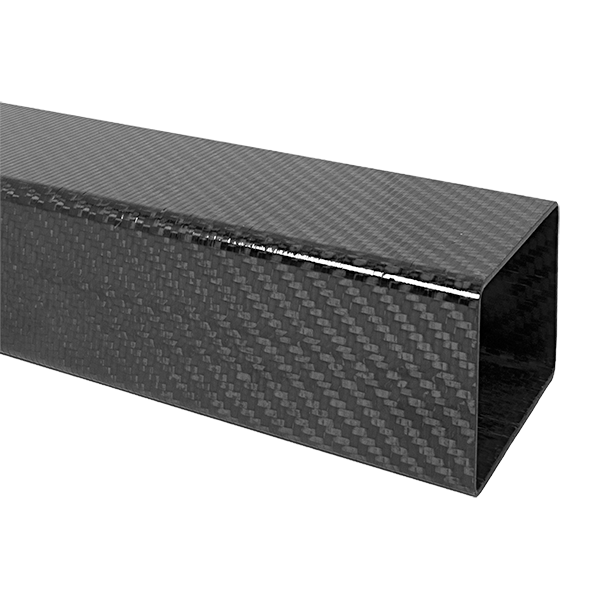

Rectangle Tube - 2" x 3" x 72" - 1/16" Wall - Twill/Uni - Standard Mod

$597.44
SKU: FDPTR2.0*3.0*72

Dragonplate’s roll wrapped twill carbon fiber rectangular tubes are manufactured with the uni sandwiched between twill weave layers on the inside and outside surfaces of the tube. This construction better supports the uni layer, improving toughness and stability, particularly near the tube ends, and interfaces well with our modular connector. Outside finish is gloss.

Carbon fiber tube manufacturers often only have a twill layer on the outside of the tube, as this approach is less costly and easier to make, but provides less support to the inner surface of the uni layer. At Dragonplate, we consider this additional layer of twill to be worth the extra effort, as it results in higher quality and more robust tubes for our customers.

Roll wrapped twill finish rectangular tubes are ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other applications where low weight and high stiffness are essential, yet appearance is also important.

High modulus options are available on longer length carbon fiber rectangular tubes. If you are looking for thicker walled tubes, contact us for more details.

Dragonplate’s roll wrapped twill carbon fiber rectangular tubes are manufactured with the uni sandwiched between twill weave layers on the inside and outside surfaces of the tube. This construction better supports the uni layer, improving toughness and stability, particularly near the tube ends, and interfaces well with our modular connector. Outside finish is gloss.

Carbon fiber tube manufacturers often only have a twill layer on the outside of the tube, as this approach is less costly and easier to make, but provides less support to the inner surface of the uni layer. At Dragonplate, we consider this additional layer of twill to be worth the extra effort, as it results in higher quality and more robust tubes for our customers.

Roll wrapped twill finish rectangular tubes are ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other applications where low weight and high stiffness are essential, yet appearance is also important.

High modulus options are available on longer length carbon fiber rectangular tubes. If you are looking for thicker walled tubes, contact us for more details.

Products specifications
Length 72"
Wall Thickness 0.0625"
Shape Rectangle
Inside Dimensions 2.0" x 3.0"
Outside Dimensions 2.125" x 3.125"
Tube Finish Gloss
Ply Orientation Woven 0/90 and UD 0
Max Temperature 250 F
Fiber Modulus Standard (33 Msi)
Composition Solid CF (Woven and Uni Directional)
Approx. Weight 2.56 lbs
Approx. Density 0.057 lbs/in^2
