What are the key specifications of the Rectangle Tube - 1" x 2" x 72" - 1/16" Wall - Twill/Uni - Standard Mod?

This tube features a rectangular profile measuring 1 inch by 2 inches, a length of 72 inches, and a wall thickness of 1/16 inch. It is constructed using a combination of twill and unidirectional carbon fiber, and has a gloss finish. The tube is roll-wrapped for enhanced strength and durability.

What performance benefits does this roll-wrapped carbon fiber rectangle tube offer?

The roll-wrapped construction provides superior strength-to-weight ratio, making the tube lightweight yet strong. It is highly resistant to corrosion, temperature extremes, and UV exposure, ensuring durability in demanding environments. These properties make it suitable for structural, robotics, and aerospace applications. Learn more about performance analysis.

What are typical use cases for the Rectangle Tube - 1" x 2" x 72"?

This tube is commonly used in applications requiring lightweight structural support, such as robotics, aerospace, industrial automation, and custom assemblies. Its rectangular shape and high strength make it ideal for frame construction, machine components, and other projects where rigidity and minimal weight are critical.

Is technical documentation or CAD support available for this tube?

Yes, DragonPlate provides detailed technical documentation and downloadable CAD models for its carbon fiber tubes, including the Rectangle Tube - 1" x 2" x 72". These resources help customers integrate the tube into their designs and ensure proper fit and function. Download CAD models.

How easy is it to cut, drill, or bond this rectangle tube for custom projects?

DragonPlate's carbon fiber tubes, including this rectangle tube, are designed to be easy to cut, drill, and bond without requiring specialized equipment. Customers have reported that these tubes integrate quickly into projects, reducing setup time and effort. For best results, use proper tools and follow recommended safety measures. Read the guide.

PrevRectangle Tube - 1" x 2" x ...

NextRectangle Tube - 1" x 2" x ...

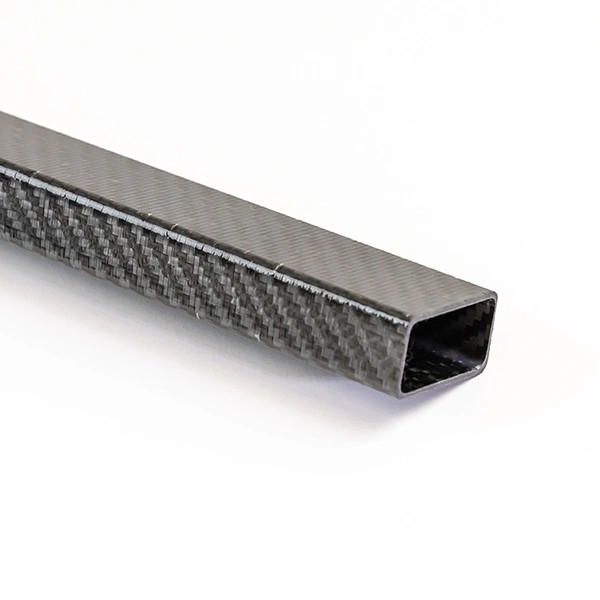

Rectangle Tube - 1" x 2" x 72" - 1/16" Wall - Twill/Uni - Standard Mod

Name: Rectangle Tube - 1 x 2 x 72 - 1/16 Wall - Twill/Uni - Standard Mod
Brand: DragonPlate
SKU: FDPTR1.0*2.0*72
Price: 395.00 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$395.00

SKU: FDPTR1.0*2.0*72

Qty:

Dragonplate’s roll wrapped twill carbon fiber rectangular tubes are manufactured with the uni sandwiched between twill weave layers on the inside and outside surfaces of the tube. This construction better supports the uni layer, improving toughness and stability, particularly near the tube ends, and interfaces well with our modular connector. Outside finish is gloss.

Carbon fiber tube manufacturers often only have a twill layer on the outside of the tube, as this approach is less costly and easier to make, but provides less support to the inner surface of the uni layer. At Dragonplate, we consider this additional layer of twill to be worth the extra effort, as it results in higher quality and more robust tubes for our customers.

Roll wrapped twill finish rectangular tubes are ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other applications where low weight and high stiffness are essential, yet appearance is also important.

High modulus options are available on longer length carbon fiber rectangular tubes. If you are looking for thicker walled tubes, contact us for more details.

Products specifications

Length	72"
Wall Thickness	0.0625"
Shape	Rectangle
Inside Dimensions	1.0" x 2.0"
Outside Dimensions	1.125" x 2.125"
Tube Finish	Gloss
Ply Orientation	Woven 0/90 and UD 0
Max Temperature	250 F
Fiber Modulus	Standard (33 Msi)
Composition	Solid CF (Woven and Uni Directional)
Approx. Weight	1.56 lb
Approx. Density	0.057 lbs/in^9
