Product Information: Rectangle Tube - 1" x 2" x 96" - 1/16" Wall - Twill/Uni - Standard Mod
What is the Rectangle Tube - 1" x 2" x 96" - 1/16" Wall - Twill/Uni - Standard Mod used for?

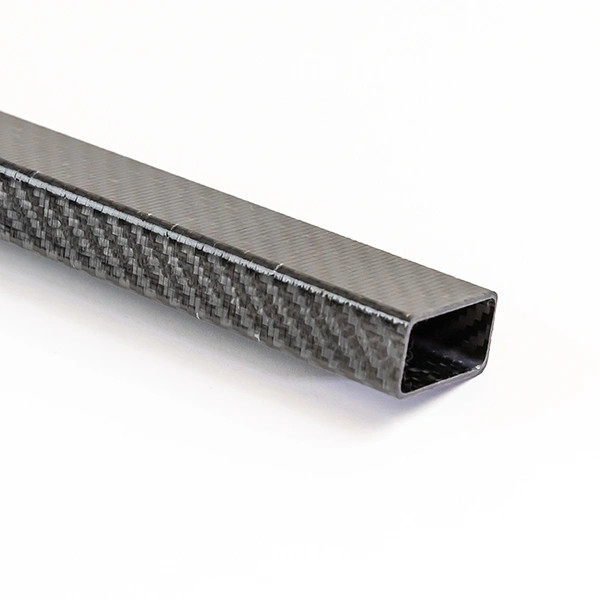

This DragonPlate rectangle tube is a roll-wrapped carbon fiber tube with a 1 inch by 2 inch cross-section, 96 inches in length, and a 1/16 inch wall thickness. It features a twill/unidirectional (uni) layup and a gloss finish. It is designed for applications requiring high strength-to-weight ratio, stiffness, and durability, such as structural frames, robotics, aerospace, and custom engineering projects. Note: For highly specialized requirements or extreme environments, custom solutions may be more appropriate.
What are the key features of DragonPlate's roll-wrapped carbon fiber rectangle tubes?
Key features include a high strength-to-weight ratio, lightweight construction, resistance to corrosion, temperature extremes, and UV exposure, and a visually appealing twill weave with a gloss finish. These tubes are suitable for demanding engineering applications. Note: For applications requiring flame retardancy or high temperature resistance, see DragonPlate's specialized product lines.
Features & Capabilities
What makes DragonPlate carbon fiber tubes suitable for high-performance applications?
DragonPlate carbon fiber tubes are engineered for optimal strength-to-weight ratio, durability, and resistance to harsh environments. They are manufactured under ISO 9001:2015 quality standards and benefit from advanced engineering tools such as Finite Element Analysis (FEA) for design optimization. Note: For applications with unique compliance or biocompatibility requirements, verify suitability with DragonPlate's engineering team.
Does DragonPlate offer custom sizes or fabrication for carbon fiber tubes?
Yes, DragonPlate provides custom fabrication services including CNC cutting, custom sheet and tube sizes, and specialized laminate schedules. Customers can request tailored solutions to meet specific design and performance requirements. For more information, visit DragonPlate Custom Fabrication. Note: Lead times and minimum order quantities may apply for custom orders.
What technical documentation is available for DragonPlate products?
DragonPlate offers detailed product catalogs, technical guides, and downloadable CAD models for integration into engineering designs. Resources include the 3M adhesives catalog, Artisan Plate carbon fiber sheets catalog, and CAD models. Note: Not all documentation may cover every product variant; check the specific product page or contact support for details.
Use Cases & Benefits
Who typically uses DragonPlate carbon fiber tubes?
DragonPlate serves aerospace engineers, robotics engineers, medical device designers, industrial automation specialists, defense contractors, drone technology innovators, hobbyists, and researchers. These users require high-performance, lightweight, and durable carbon fiber solutions for demanding applications. Note: For applications outside these industries, suitability should be confirmed with DragonPlate's technical team.
What business impact can customers expect from using DragonPlate carbon fiber tubes?
Customers can expect reduced manufacturing costs, improved product performance, and faster project completion. For example, a custom carbon fiber robotic arm saved a customer $1 million annually by improving efficiency and reducing costs (case study). Note: Actual results depend on application and implementation; not all projects will achieve the same level of savings.
What problems do DragonPlate carbon fiber tubes help solve?
DragonPlate tubes address high manufacturing costs, long lead times for custom parts, complex manufacturing processes, difficulty cutting and machining carbon fiber, and challenges joining tubes without welding. The ModCon modular connector system provides a solution for assembling rigid structures without specialty bonding. Note: For highly specialized joining or machining needs, additional consultation may be required.
Implementation & Ease of Use
How easy is it to cut, drill, and bond DragonPlate carbon fiber tubes?
DragonPlate's prefabricated tubes are designed for ease of use and can be cut, drilled, and bonded without specialized equipment. Customers have noted that this reduces setup time and effort. Comprehensive technical guides and CAD models are available to support implementation. Note: Proper safety measures should be followed when machining carbon fiber due to dust and handling risks.
How quickly can DragonPlate products be implemented in a project?
Ready-to-use components allow for immediate integration into projects, significantly reducing lead times. For custom designs, DragonPlate offers design, prototyping, and manufacturing services to streamline implementation. Note: Custom orders may require additional lead time depending on complexity and order volume.
Security, Compliance & Quality
What quality standards and certifications does DragonPlate meet?
All DragonPlate products are manufactured under ISO 9001:2015 quality standards at their facility in Elbridge, New York. This ensures consistent quality and reliability for demanding applications. Note: ISO 9001:2015 certification covers manufacturing processes but may not address all industry-specific compliance needs.
What security and compliance certifications does DragonPlate hold?
DragonPlate has completed a CMMC Level 1 self-assessment (submitted to SPRS) and a NIST SP 800-171 self-assessment to meet DFARS 252.204-7012 requirements. The company is actively advancing its cybersecurity program to meet CMMC Level 2 requirements. For details, contact service@dragonplate.com or call 315-252-2559. Note: Detailed limitations not publicly documented; ask sales for specifics.
Support & Resources
What support resources are available for DragonPlate customers?
Customers have access to technical guides, CAD models, product catalogs, and responsive customer support via phone (315-252-2559) and email (service@dragonplate.com). DragonPlate's team assists with design, implementation, and troubleshooting. Note: Support hours are Monday–Friday, 8:30am–5:00pm ET.
Case Studies & Proof
Can you share examples of successful projects using DragonPlate carbon fiber tubes?
Yes. Notable examples include a custom carbon fiber robotic arm that saved a customer $1 million annually (case study), composite chassis for wall-climbing robots in collaboration with International Climbing Machines (case study), and composite enclosures for marine defense with Frontier Electronic Systems (case study). Note: Results are project-specific and may not be representative of all use cases.
