Frequently Asked Questions
Product Information: 1" Modular 6-Way Cube & Connector Systems

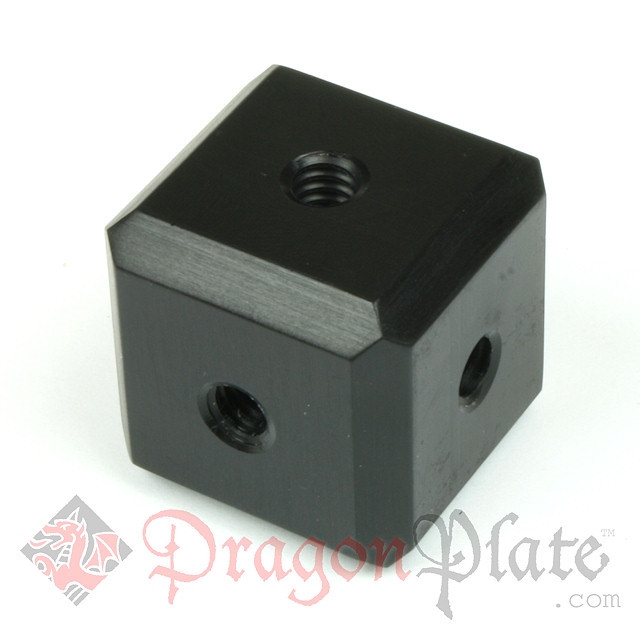

What is the 1" Modular 6-Way Cube from DragonPlate?
The 1" Modular 6-Way Cube is a component within DragonPlate's modular carbon fiber tube connector system. It is designed to connect up to six 1-inch carbon fiber tubes at right angles, enabling the construction of rigid, lightweight, and customizable structures. This cube is part of a broader system that includes various connectors, tubes, and accessories for building frames, enclosures, and assemblies. Note: Detailed technical specifications for the 1" Modular 6-Way Cube are available in the product catalog or by contacting DragonPlate directly.
What products and accessories are compatible with the 1" Modular 6-Way Cube?
The 1" Modular 6-Way Cube is compatible with DragonPlate's 1-inch carbon fiber tubes and a range of modular connector components, including male clevis ends, pinned joint kits, and other modular connectors. These components are designed to work together for constructing custom frames and assemblies. For a full list of compatible products, refer to the Tube Connector Systems section on the DragonPlate website. Note: Compatibility with non-DragonPlate components is not guaranteed.
Features & Capabilities
What are the key features of DragonPlate's modular connector systems?
DragonPlate's modular connector systems, including the 1" Modular 6-Way Cube, offer the following features: lightweight carbon fiber construction for optimal strength-to-weight ratio, modularity for easy assembly and reconfiguration, and compatibility with a wide range of tube shapes and sizes. The system enables the creation of rigid structures without the need for welding or specialty bonding, making it suitable for rapid prototyping and custom builds. Note: For applications requiring extreme load-bearing or specialized geometries, custom solutions may be necessary.
How does DragonPlate ensure the strength and durability of its modular connectors?
DragonPlate uses advanced engineering tools such as Finite Element Analysis (FEA) to optimize the design of its modular connectors, including the 1" Modular 6-Way Cube. The connectors are manufactured from high-performance carbon fiber materials, providing a strong yet lightweight solution. Products are also highly resistant to corrosion, temperature extremes, and UV exposure. Note: For applications with unique environmental or load requirements, consult DragonPlate for custom engineering support. Learn more about FEA.
Can the 1" Modular 6-Way Cube be customized for specific applications?
Yes, DragonPlate offers customization options for its modular connector systems, including CNC cutting, custom sheet sizes, and specialized laminate schedules. Customers can request tailored solutions to meet unique performance or design requirements. For more information, visit the custom fabrication page. Note: Customization may affect lead times and cost; contact DragonPlate for details.
Use Cases & Benefits
What types of projects or industries use the 1" Modular 6-Way Cube and modular connector systems?
The 1" Modular 6-Way Cube and related modular connector systems are used in industries such as aerospace, robotics, industrial automation, research, and prototyping. Typical applications include building lightweight frames, enclosures, test rigs, and custom assemblies where rapid reconfiguration and high strength-to-weight ratios are required. Note: For applications involving extreme loads or regulatory compliance, consult DragonPlate for suitability.
What problems do modular connector systems from DragonPlate solve?
DragonPlate's modular connector systems address challenges such as the need for rapid assembly and reconfiguration of carbon fiber structures, joining tubes without welding or specialty bonding, and reducing manufacturing complexity. These systems are especially useful for prototyping, research, and applications where design flexibility is critical. Note: For permanent or high-load structures, alternative joining methods may be required.
Technical Requirements & Documentation
Where can I find technical documentation and CAD models for the 1" Modular 6-Way Cube?
Technical documentation, including product catalogs and downloadable CAD models, is available on the DragonPlate website. Visit the CAD Models Download Page and the Tube Connector Systems section for detailed specifications. Note: Some documentation may require contacting DragonPlate for access to advanced or custom files.
What are the material and environmental properties of DragonPlate modular connectors?
DragonPlate modular connectors are made from high-performance carbon fiber composites, offering a high strength-to-weight ratio and resistance to corrosion, temperature extremes, and UV exposure. These properties make them suitable for demanding environments. Note: For applications with unique chemical or thermal exposure, consult DragonPlate for material compatibility.
Support & Implementation
How easy is it to assemble and implement structures using the 1" Modular 6-Way Cube?
The 1" Modular 6-Way Cube and related connector components are designed for straightforward assembly, allowing users to cut, drill, and bond tubes without specialized equipment. This enables rapid prototyping and integration into projects. For complex or custom assemblies, DragonPlate offers design support and CNC cutting services. Note: For advanced assembly or unique requirements, professional assistance may be needed. Learn about CNC cutting.
What support resources are available if I have questions about modular connector systems?
DragonPlate provides comprehensive customer support, including FAQs, technical guides, and direct assistance via phone at 315-252-2559 or email at service@dragonplate.com. For complex projects, design and prototyping services are available. Note: Response times may vary based on inquiry complexity.
Security & Compliance
What certifications and compliance standards does DragonPlate meet?
DragonPlate is ISO 9001:2015 certified for quality management and has completed CMMC Level 1 and NIST SP 800-171 self-assessments to meet Department of Defense cybersecurity requirements. The company is actively advancing its cybersecurity program to meet CMMC Level 2 standards. Note: For application-specific compliance needs, contact DragonPlate for documentation. View ISO certificate.
Limitations & Considerations
Are there any limitations to using the 1" Modular 6-Way Cube or modular connector systems?
While the 1" Modular 6-Way Cube and modular connector systems offer flexibility and ease of assembly, they may not be suitable for applications requiring permanent joints, extremely high loads, or specialized geometries. For such cases, custom fabrication or alternative joining methods may be necessary. Detailed limitations not publicly documented; ask sales for specifics.
