What are the exact dimensions and specifications of the Carbon Fiber Roll Wrapped Twill Square Tube?

This product is a roll wrapped carbon fiber square tube with an inside dimension (ID) of 1.25 inches x 1.25 inches, a length of 96 inches, and a wall thickness of 1/16 inch. It features a twill/uni weave and is classified as high modulus, offering enhanced stiffness and strength for demanding applications.

What are the performance benefits of this high modulus carbon fiber square tube?

The high modulus carbon fiber construction provides superior strength-to-weight ratio and increased stiffness compared to standard tubes. This makes it ideal for applications requiring minimal weight and maximum rigidity, such as aerospace, robotics, and structural assemblies. The tube is also highly resistant to corrosion, temperature extremes, and UV exposure, ensuring durability in challenging environments.

What typical applications is this square tube suited for?

This tube is commonly used in aerospace, robotics, industrial automation, and custom structural projects where lightweight, high-strength, and rigid components are required. Its twill/uni weave and high modulus properties make it suitable for precision assemblies, frames, and supports.

Can this tube be easily cut, drilled, or bonded for custom projects?

Yes, DragonPlate's roll wrapped carbon fiber square tubes are designed to be easy to cut, drill, and bond without requiring specialized equipment. This allows for straightforward integration into custom assemblies and projects. For best results, use proper tools and safety measures when machining carbon fiber.

Is technical documentation or CAD support available for this product?

Yes, DragonPlate provides detailed technical documentation and downloadable CAD models for its carbon fiber tubes, including this roll wrapped twill square tube. These resources help customers integrate the tube into their designs and ensure proper fit and performance.

PrevSquare Tube - 1.25" x 1.25"...

NextSquare Tube - 1.25" x 1.25"...

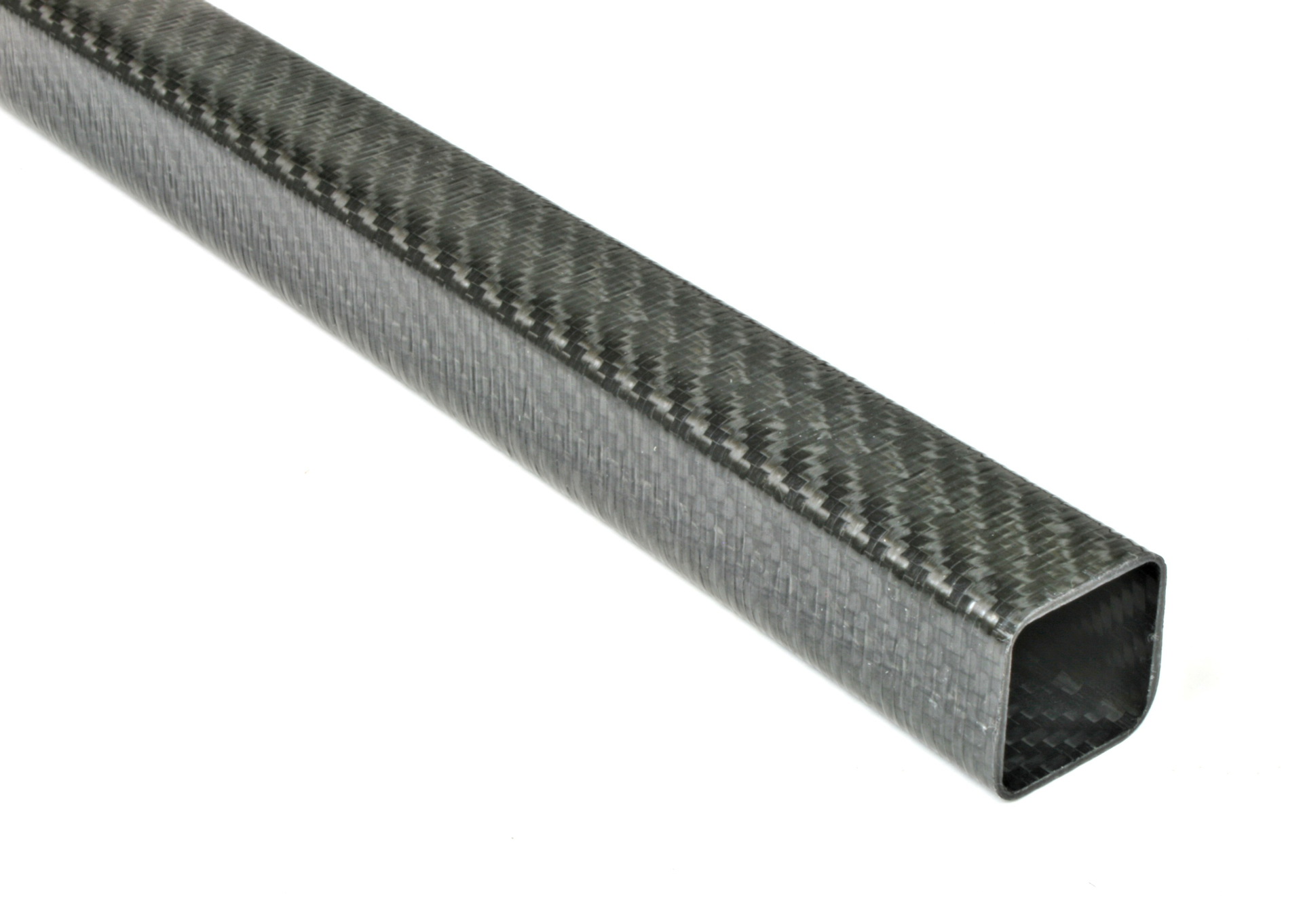

Square Tube - 1.25" x 1.25" x 96" - 1/16" Wall - Twill/Uni - High Mod

Name: Square Tube - 1.25 x 1.25 x 96 - 1/16 Wall - Twill/Uni - High Mod
Brand: DragonPlate
SKU: FDPTSHM1.25*1.375*96
Price: 640.80 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$640.80

High modulus options available.

Tubes over 90" long have high shipping costs due to length. We offer one free cut to reduce length and save on your shipping costs. Contact us with your desired cut length. (cut tolerance is -0, +0.25")

SKU: FDPTSHM1.25*1.375*96

Qty:

Please Allow 5-7 days before this item ships

Dragonplate’s roll wrapped twill carbon fiber square tubes are manufactured with the uni sandwiched between twill weave layers on the inside and outside surfaces of the tube. This construction better supports the uni layer, improving toughness and stability, particularly near the tube ends, and interfaces well with our modular connector. Outside finish is gloss.

Carbon fiber tube manufacturers often only have a twill layer on the outside of the tube, as this approach is less costly and easier to make, but provides less support to the inner surface of the uni layer. At Dragonplate, we consider this additional layer of twill to be worth the extra effort, as it results in higher quality and more robust tubes for our customers.

Roll wrapped twill finish square tubes are ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other applications where low weight and high stiffness are essential, yet appearance is also important.

High modulus options are available on these carbon fiber square tubes. If you are looking for thicker walled tubes, contact us for more details.

Three different unidirectional CF options are available in these tubes: 33 msi standard modulus (SM) PAN unidirectional carbon fiber, 57 msi high modulus (HM) PAN carbon fiber, and 110 msi ultra high modulus (UHM) Pitch carbon fiber. The benefit of the PAN carbon fiber is higher strength, whereas the pitch carbon fiber has higher stiffness, higher thermal conductivity, and lower thermal expansion (CTE nearly zero). Depending on the application, both are excellent options. For example, if the part requires maximum strength, then the standard modulus material would be the best choice. If additional stiffness is required, but the component must still retain most of the high strength properties, then the high modulus PAN carbon fiber is the better choice. If, however, the loads are low, for example in many automation and robotics applications, the ultra high modulus Pitch fiber can substantially increase the stiffness of a part. Properly designed, a carbon fiber part made from Dragonplate UHM carbon fiber can easily be stiffer than one made from steel, but at less than 1/5th the weight.

Although more expensive than our other carbon fiber options, Dragonplate HM and UHM carbon fiber tubes provide an opportunity for unprecedented weight savings, particularly in applications where minimum weight and deflection are critical. Dragonplate HM tubes are about 50% stiffer than aluminum, whereas the UHM tubes are as rigid as steel. Our standard offering includes tubes with 1/16" wall thickness; however, we are able to custom fabricate these tubes with 1/4" or more wall thickness upon request.

Since UHM carbon fiber material has certain export restrictions, customers are required to fill out a short form detailing the end use. Both the customer and application will need to be vetted before the product is able to ship. Please fill-out the PDF form to the left and fax or email it back to us if you have ordered the UHM option.

Please allow 10-15 days before high modulus tubes ship.
