Square Tube - 2.5" x 2.5" x 96" - 1/16" Wall - Twill/Uni - Ultra High Mod Specifications & Usage

What are the dimensions and construction details of the Square Tube - 2.5" x 2.5" x 96" - 1/16" Wall - Twill/Uni - Ultra High Mod?

This carbon fiber square tube measures 2.5 inches by 2.5 inches in cross-section, is 96 inches long, and has a wall thickness of 1/16 inch. It features a combination of twill and unidirectional (uni) fiber orientations and is classified as "Ultra High Modulus," indicating superior stiffness and strength for demanding applications.

What performance benefits does the Ultra High Modulus square tube offer?

The Ultra High Modulus square tube provides an optimal strength-to-weight ratio, making it suitable for applications requiring high stiffness and minimal weight. It is highly resistant to corrosion, temperature extremes, and UV exposure, ensuring durability in challenging environments. These properties are ideal for aerospace, robotics, and industrial automation projects. Learn more about performance analysis.

What typical applications or industries use this square tube?

This square tube is commonly used in aerospace, robotics, industrial automation, and custom engineering projects where high stiffness and low weight are critical. Its construction and modulus rating make it suitable for structural frameworks, machine arms, and other load-bearing assemblies.

Can the Square Tube - 2.5" x 2.5" x 96" be customized or cut to specific sizes?

Yes, DragonPlate offers CNC cutting and custom fabrication services for this square tube. Customers can request custom lengths, specialized laminate schedules, or tailored solutions to meet specific project requirements. Explore customization options.

Where can I find technical documentation or CAD models for this square tube?

Technical documentation and downloadable CAD models for DragonPlate square tubes are available online. These resources help customers integrate the product into their designs and ensure accurate specifications. Access CAD models.

Loading...
PrevSquare Tube - 2.5" x 2.5" x...
NextCarbon Fiber Roll Wrapped T...

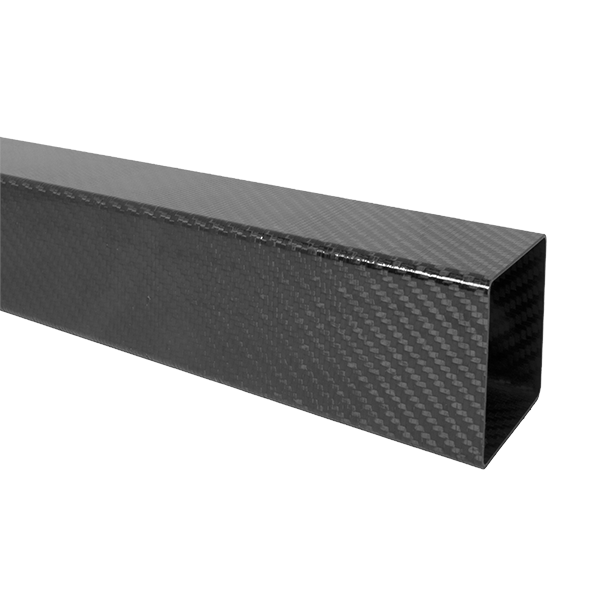

Square Tube - 2.5" x 2.5" x 96" - 1/16" Wall - Twill/Uni - Ultra High Mod

$1,086.14

Tubes over 90" long have high shipping costs due to length. We offer one free cut to reduce length and save on your shipping costs. Contact us with your desired cut length. (cut tolerance is -0, +0.25")

SKU: FDPTSUHM2.5*2.625*96

Dragonplate’s roll wrapped twill carbon fiber rectangular tubes are manufactured with the uni sandwiched between twill weave layers on the inside and outside surfaces of the tube. This construction better supports the uni layer, improving toughness and stability, particularly near the tube ends, and interfaces well with our modular connector. Outside finish is gloss.

Carbon fiber tube manufacturers often only have a twill layer on the outside of the tube, as this approach is less costly and easier to make, but provides less support to the inner surface of the uni layer. At Dragonplate, we consider this additional layer of twill to be worth the extra effort, as it results in higher quality and more robust tubes for our customers.

Roll wrapped twill finish rectangular tubes are ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other applications where low weight and high stiffness are essential, yet appearance is also important.

High modulus options are available on longer length carbon fiber rectangular tubes. If you are looking for thicker walled tubes, contact us for more details.

Dragonplate’s roll wrapped twill carbon fiber rectangular tubes are manufactured with the uni sandwiched between twill weave layers on the inside and outside surfaces of the tube. This construction better supports the uni layer, improving toughness and stability, particularly near the tube ends, and interfaces well with our modular connector. Outside finish is gloss.

Carbon fiber tube manufacturers often only have a twill layer on the outside of the tube, as this approach is less costly and easier to make, but provides less support to the inner surface of the uni layer. At Dragonplate, we consider this additional layer of twill to be worth the extra effort, as it results in higher quality and more robust tubes for our customers.

Roll wrapped twill finish rectangular tubes are ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other applications where low weight and high stiffness are essential, yet appearance is also important.

High modulus options are available on longer length carbon fiber rectangular tubes. If you are looking for thicker walled tubes, contact us for more details.

Products specifications
Length 96"
Wall Thickness 0.0625"
Shape Square
Inside Dimensions 2.5" x 2.5"
Outside Dimensions 2.625" x 2.625"
Tube Finish Gloss
Ply Orientation Woven 0/90 and UD 0
Max Temperature 250 F
Fiber Modulus Ultra High (110 Msi)
Composition Solid CF (Woven and Uni Directional)
Approx. Weight 3.41 lbs
Approx. Density 0.057 lbs/in^2
