Frequently Asked Questions

Rectangle Tube - 2" x 4" x 72" - 1/16" Wall - Twill/Uni - Standard Mod

What are the key specifications of the Rectangle Tube - 2" x 4" x 72" - 1/16" Wall - Twill/Uni - Standard Mod?

This tube features a 2-inch by 4-inch rectangular profile, a length of 72 inches, and a wall thickness of 1/16 inch. It is constructed using roll-wrapped carbon fiber with a twill/uni weave, providing a balance of strength and stiffness for structural applications.

What are the performance benefits of this carbon fiber rectangle tube?

The tube offers an optimal strength-to-weight ratio, making it suitable for applications where minimizing weight is critical. Its carbon fiber construction ensures high durability, resistance to corrosion, temperature extremes, and UV exposure, supporting long-term use in demanding environments. Learn more about performance analysis.

What typical applications is this tube suited for?

This rectangle tube is commonly used in robotics, aerospace, industrial automation, and structural assemblies where lightweight, high-strength materials are required. Its rectangular shape and twill/uni weave make it ideal for frames, supports, and custom assemblies.

Is technical documentation or CAD support available for this tube?

Yes, DragonPlate provides detailed technical documentation and downloadable CAD models for integration into design workflows. These resources help engineers and designers ensure compatibility and optimize their assemblies. Download CAD models.

How easy is it to cut, drill, or bond this rectangle tube?

DragonPlate's prefabricated carbon fiber tubes are designed for ease of use. They can be cut, drilled, and bonded with standard tools and adhesives, allowing for immediate integration into projects without specialized equipment. For best results, refer to DragonPlate's technical guides and recommended adhesives. See adhesive options.

Loading...
PrevRectangle Tube - 2" x 4" x ...
NextRectangle Tube - 2" x 4" x ...

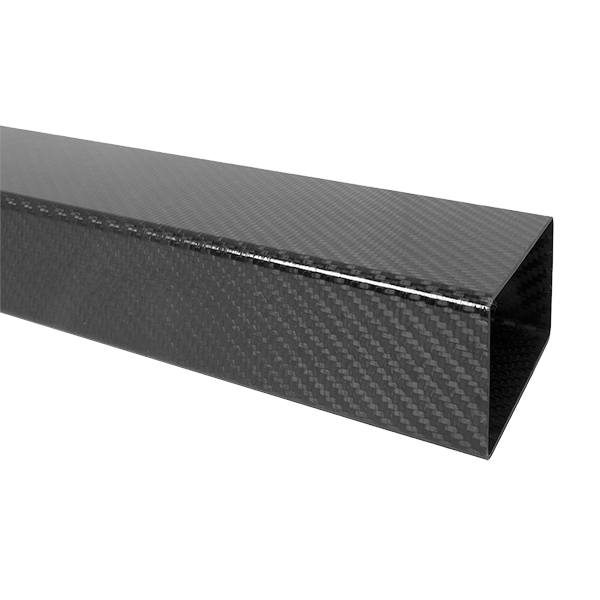

Rectangle Tube - 2" x 4" x 72" - 1/16" Wall - Twill/Uni - Standard Mod

$619.27
SKU: FDPTR2.0*4.0*72

Dragonplate’s roll wrapped twill carbon fiber rectangular tubes are manufactured with the uni sandwiched between twill weave layers on the inside and outside surfaces of the tube. This construction better supports the uni layer, improving toughness and stability, particularly near the tube ends, and interfaces well with our modular connector. Outside finish is gloss.

Carbon fiber tube manufacturers often only have a twill layer on the outside of the tube, as this approach is less costly and easier to make, but provides less support to the inner surface of the uni layer. At Dragonplate, we consider this additional layer of twill to be worth the extra effort, as it results in higher quality and more robust tubes for our customers.

Roll wrapped twill finish rectangular tubes are ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other applications where low weight and high stiffness are essential, yet appearance is also important.

High modulus options are available on longer length carbon fiber rectangular tubes. If you are looking for thicker walled tubes, contact us for more details.

Dragonplate’s roll wrapped twill carbon fiber rectangular tubes are manufactured with the uni sandwiched between twill weave layers on the inside and outside surfaces of the tube. This construction better supports the uni layer, improving toughness and stability, particularly near the tube ends, and interfaces well with our modular connector. Outside finish is gloss.

Carbon fiber tube manufacturers often only have a twill layer on the outside of the tube, as this approach is less costly and easier to make, but provides less support to the inner surface of the uni layer. At Dragonplate, we consider this additional layer of twill to be worth the extra effort, as it results in higher quality and more robust tubes for our customers.

Roll wrapped twill finish rectangular tubes are ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other applications where low weight and high stiffness are essential, yet appearance is also important.

High modulus options are available on longer length carbon fiber rectangular tubes. If you are looking for thicker walled tubes, contact us for more details.

Products specifications
Length 72"
Wall Thickness 0.0625"
Shape Rectangle
Inside Dimensions 2.0" x 4.0"
Outside Dimensions 2.125" x 4.125"
Tube Finish Gloss
Ply Orientation Woven 0/90 and UD 0
Max Temperature 250 F
Fiber Modulus Standard (33 Msi)
Composition Solid CF (Woven and Uni Directional)
Approx. Weight 3.07 lbs
Approx. Density 0.057 lbs/in^2
