Frequently Asked Questions

Square Tube - 3" x 3" x 96" - 1/16" Wall - Twill/Uni - Standard Mod

What are the key specifications of the Square Tube - 3" x 3" x 96" - 1/16" Wall - Twill/Uni - Standard Mod?

This tube features a 3 inch by 3 inch square profile, a length of 96 inches, and a wall thickness of 1/16 inch. It is constructed with a twill/uni carbon fiber finish and is classified as "Standard Modulus." These specifications make it suitable for applications requiring lightweight strength and rigidity.

What are the typical applications for this carbon fiber square tube?

The Square Tube - 3" x 3" x 96" - 1/16" Wall - Twill/Uni - Standard Mod is commonly used in structural frameworks, robotics, aerospace, and industrial automation projects where high strength, low weight, and durability are required. Its square profile is ideal for rigid assemblies and modular structures.

What are the performance benefits of this tube compared to traditional materials?

This carbon fiber square tube offers a superior strength-to-weight ratio compared to metals like aluminum or steel. It is highly resistant to corrosion, temperature extremes, and UV exposure, ensuring long-lasting performance in demanding environments. These benefits are especially valuable in aerospace, robotics, and industrial applications. Learn more about performance analysis.

Can this square tube be customized for specific project requirements?

Yes, DragonPlate offers CNC cutting, custom sheet sizes, and specialized laminate schedules for this tube. Customers can request tailored solutions to meet unique design or performance needs. For more details, visit custom fabrication options.

Is technical documentation or CAD support available for this product?

Technical documentation, including product catalogs and downloadable CAD models, is available to assist with design and integration of the Square Tube - 3" x 3" x 96" - 1/16" Wall - Twill/Uni - Standard Mod. Access CAD models at dragonplate.com/cad-models and product catalogs for detailed specifications.

Is this square tube manufactured under any quality certifications?

Yes, the Square Tube - 3" x 3" x 96" - 1/16" Wall - Twill/Uni - Standard Mod is manufactured under ISO 9001:2015 quality standards at DragonPlate's facility in Elbridge, New York, ensuring consistent quality and reliability.

Loading...
PrevSquare Tube - 3" x 3" x 96"...
NextSquare Tube - 3" x 3" x 96"...

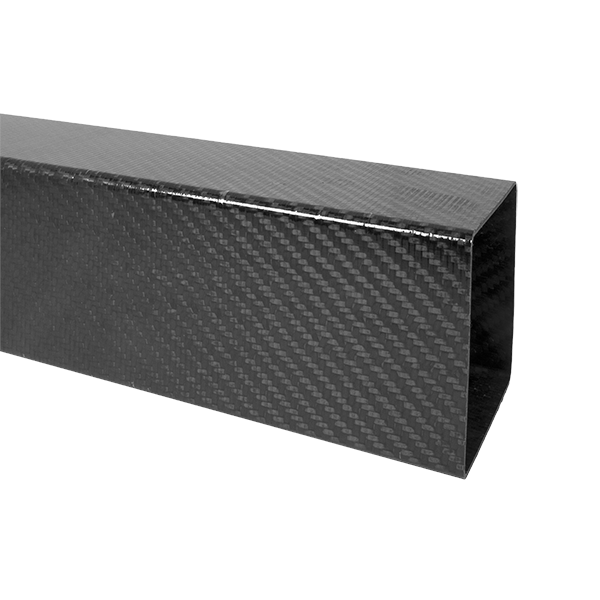

Square Tube - 3" x 3" x 96" - 1/16" Wall - Twill/Uni - Standard Mod

$806.05

Tubes over 90" long have high shipping costs due to length. We offer one free cut to reduce length and save on your shipping costs. Contact us with your desired cut length. (cut tolerance is -0, +0.25")

SKU: FDPTS3.0*3.125*96

Dragonplate’s roll wrapped twill carbon fiber rectangular tubes are manufactured with the uni sandwiched between twill weave layers on the inside and outside surfaces of the tube. This construction better supports the uni layer, improving toughness and stability, particularly near the tube ends, and interfaces well with our modular connector. Outside finish is gloss.

Carbon fiber tube manufacturers often only have a twill layer on the outside of the tube, as this approach is less costly and easier to make, but provides less support to the inner surface of the uni layer. At Dragonplate, we consider this additional layer of twill to be worth the extra effort, as it results in higher quality and more robust tubes for our customers.

Roll wrapped twill finish rectangular tubes are ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other applications where low weight and high stiffness are essential, yet appearance is also important.

High modulus options are available on longer length carbon fiber rectangular tubes. If you are looking for thicker walled tubes, contact us for more details.

Dragonplate’s roll wrapped twill carbon fiber rectangular tubes are manufactured with the uni sandwiched between twill weave layers on the inside and outside surfaces of the tube. This construction better supports the uni layer, improving toughness and stability, particularly near the tube ends, and interfaces well with our modular connector. Outside finish is gloss.

Carbon fiber tube manufacturers often only have a twill layer on the outside of the tube, as this approach is less costly and easier to make, but provides less support to the inner surface of the uni layer. At Dragonplate, we consider this additional layer of twill to be worth the extra effort, as it results in higher quality and more robust tubes for our customers.

Roll wrapped twill finish rectangular tubes are ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other applications where low weight and high stiffness are essential, yet appearance is also important.

High modulus options are available on longer length carbon fiber rectangular tubes. If you are looking for thicker walled tubes, contact us for more details.

Products specifications
Length 96"
Wall Thickness 0.0625"
Shape Square
Inside Dimensions 3.0" x 3.0"
Outside Dimensions 3.125" x 3.125"
Tube Finish Gloss
Ply Orientation Woven 0/90 and UD 0
Max Temperature 250 F
Fiber Modulus Standard (33 Msi)
Composition Solid CF (Woven and Uni Directional)
Approx. Weight 4.10 lbs
Approx. Density 0.057 lbs/in^2
