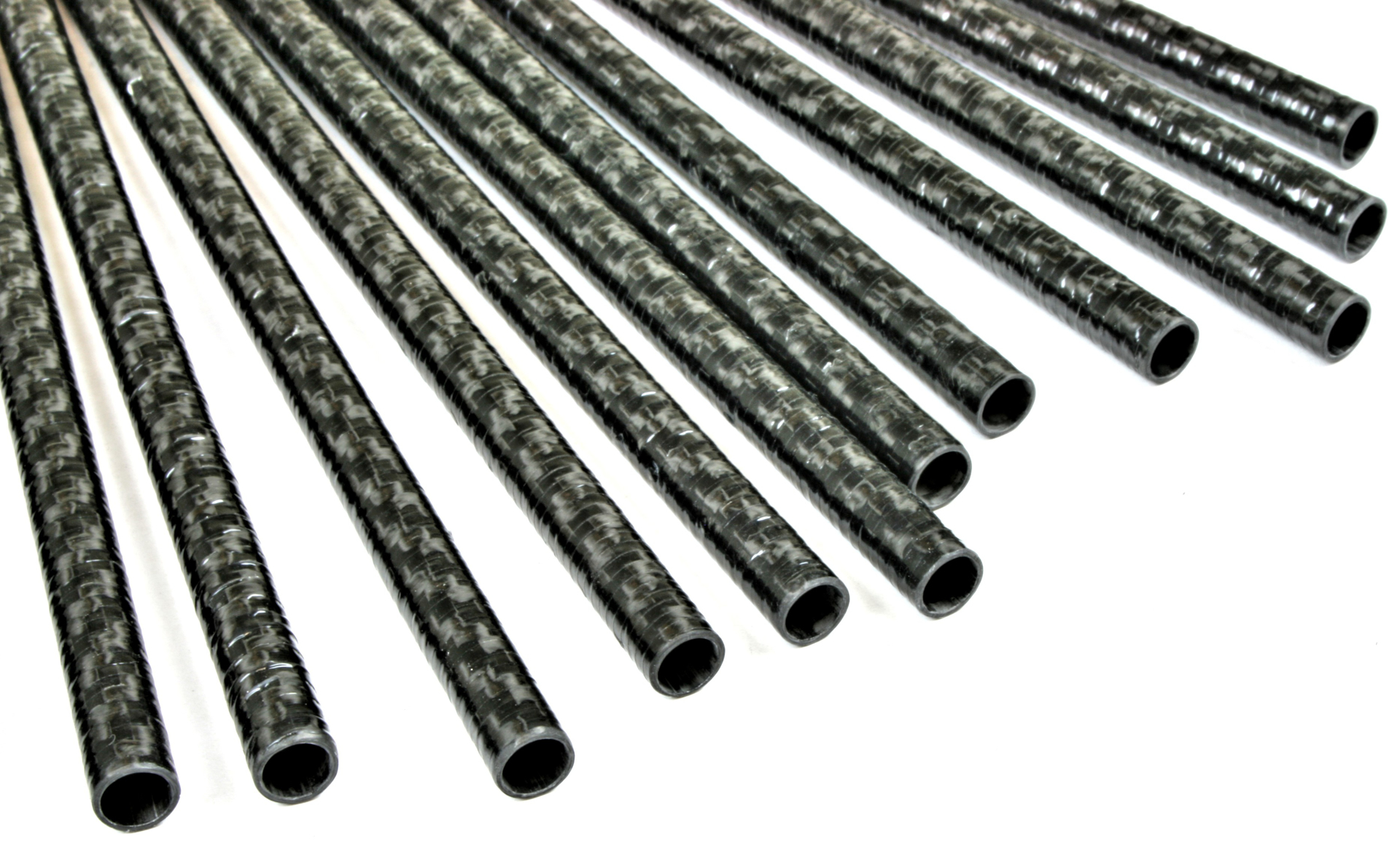

Carbon Fiber Roll Wrapped Twill Tube ~ 0.313" ID x 48", Thin Wall Gloss Finish

$88.37
Tube face options available.
SKU: FDPT.313*.373*48
*

Please Allow 7-10 days before this item ships

DragonPlate roll wrapped thin-wall carbon fiber tubing is fabricated from 0/90 degree carbon fiber twill fabric with a wall thickness of approximately .03". This product is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and other applications where low weight and high stiffness are essential, while appearance is also important.



Fabricated from prepreg fabrics and cello wrapped for a gloss finish.



Please allow 7-10 business days for this product to ship.

DragonPlate roll wrapped thin-wall carbon fiber tubing is fabricated from 0/90 degree carbon fiber twill fabric with a wall thickness of approximately .03". This product is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and other applications where low weight and high stiffness are essential, while appearance is also important.



Fabricated from prepreg fabrics and cello wrapped for a gloss finish.



Please allow 7-10 business days for this product to ship.

Products specifications
Length 48"
Wall Thickness 0.03"
Shape Round
Inner Diameter 0.313"
Outside Diameter 0.373"
Tube Finish Gloss
Ply Orientation Woven 0/90
Max Temperature 250 F
Fiber Modulus Standard (33 Msi)
Composition Solid CF (All Woven)
Approx. Weight

1.366 OZ
Approx. Density 0.055 lb/in3
