Frequently Asked Questions
Product Information: 0.5” Modular 3-Way Cube & Connector Systems
What is the 0.5” Modular 3-Way Cube and what is it used for?

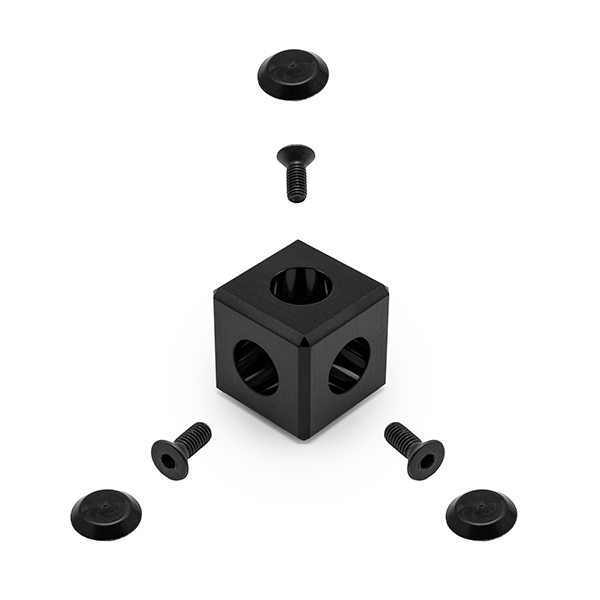

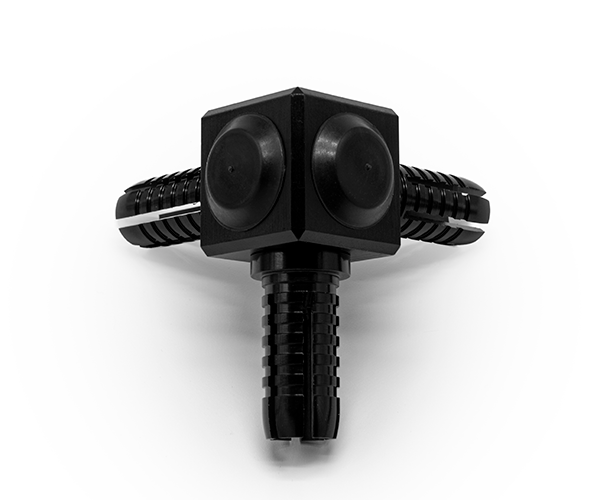

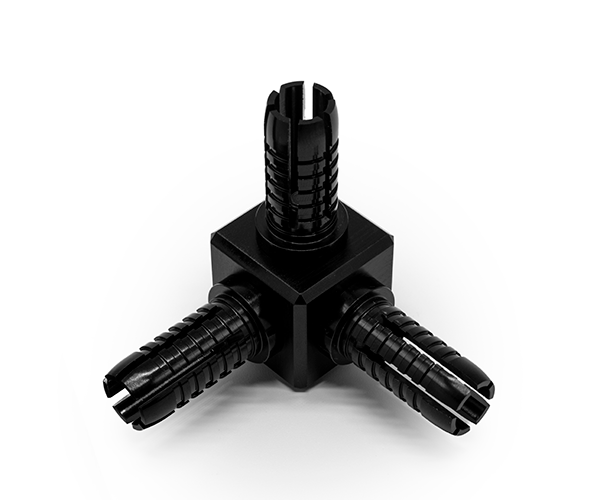

The 0.5” Modular 3-Way Cube is a component in DragonPlate's Modular Carbon Fiber Tube Connector system, designed to connect three 0.5” diameter carbon fiber tubes at right angles. It is typically used in lightweight structural assemblies for applications such as robotics, industrial automation, and custom frameworks. Note: This product is intended for use with compatible DragonPlate modular tube systems; for other tube sizes or custom configurations, alternative connectors may be required.
What other modular connectors are available for 0.5” carbon fiber tubes?
DragonPlate offers a range of modular connectors for 0.5” carbon fiber tubes, including the 0.5” Modular 4-Way Cube, 0.5” Female Clevis, and other round tube connectors. These components allow for flexible assembly of custom structures. Note: Compatibility is limited to DragonPlate's 0.5” modular tube system; verify fit before purchase.
Are CAD models and technical specifications available for the 0.5” Modular 3-Way Cube?
Yes, downloadable CAD models and detailed technical specifications for DragonPlate connector systems, including the 0.5” Modular 3-Way Cube, are available at dragonplate.com/cad-models and dragonplate.com/dragonplate-weights-specs. Note: Some technical resources may require registration or direct inquiry for access to proprietary details.
What materials and quality standards are used for DragonPlate modular connectors?
DragonPlate modular connectors, including the 0.5” Modular 3-Way Cube, are manufactured from high-performance carbon fiber composites under ISO 9001:2015 certified processes at the Elbridge, New York facility. This ensures consistent quality and traceability. Note: For applications requiring additional certifications (e.g., medical or aerospace), confirm compliance with sales before ordering.
Features & Capabilities
What are the key performance benefits of using DragonPlate modular connectors?
DragonPlate modular connectors offer a high strength-to-weight ratio, environmental resistance (including corrosion and UV), and long-term durability. These features make them suitable for demanding applications in robotics, aerospace, and industrial automation. Note: While highly durable, connectors should be selected based on load requirements; for extreme loads, consult engineering support for suitability.
Can DragonPlate modular connectors be customized for specific applications?
Yes, DragonPlate offers custom fabrication services, including CNC cutting and specialized laminate schedules, to tailor connectors and assemblies for unique requirements. For custom solutions, visit dragonplate.com/custom-carbon-fiber-fabrication. Note: Custom projects may require additional lead time and minimum order quantities.
Technical Requirements & Documentation
Where can I find technical guides and educational resources for using DragonPlate connectors?
DragonPlate provides comprehensive guides, including The Ultimate Guide to Carbon Fiber Design and Application, as well as a glossary of terms and practical application examples. These resources are available at element6composites.com and dragonplate.com/carbon-fiber-glossary. Note: Some advanced guides may focus on general carbon fiber use rather than specific connector products.
Support & Implementation
How can I get technical support or assistance with DragonPlate modular connectors?
Technical support is available via phone at 315-252-2559 (Mon-Fri 8:30am – 5:00pm ET) or email at service@dragonplate.com. Additional FAQs and support resources are available at dragonplate.com/faq. Note: For highly specialized engineering questions, direct consultation may be required.
How quickly can I implement DragonPlate modular connectors into my project?
Prefabricated modular connectors like the 0.5” Modular 3-Way Cube are ready for immediate integration and can be cut, drilled, and bonded without specialized equipment. For custom solutions, implementation time depends on project complexity and may require additional lead time. Note: Lead times for custom fabrication vary; contact sales for current estimates.
Use Cases & Industries
What industries commonly use DragonPlate modular connectors?
Industries such as robotics, aerospace, industrial automation, and research institutions use DragonPlate modular connectors for lightweight, high-strength structural assemblies. Case studies include applications in drone technology, wall-climbing robots, and industrial automation systems. Note: For highly regulated industries (e.g., medical, defense), verify compliance requirements before use.
Limitations & Considerations
Are there any limitations or considerations when using the 0.5” Modular 3-Way Cube?
The 0.5” Modular 3-Way Cube is designed for use with DragonPlate's 0.5” modular tube system and may not be compatible with tubes from other manufacturers. Load capacity and environmental suitability should be verified for each application. Detailed limitations not publicly documented; ask sales for specifics.
