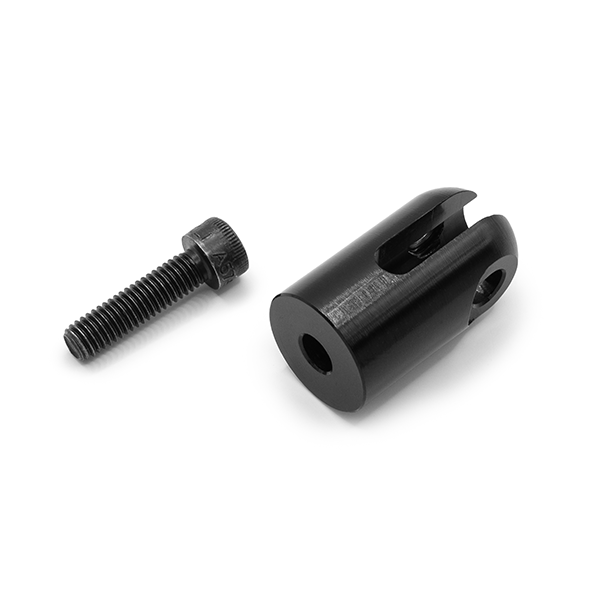

0.5” Female Clevis, Counterbore

$11.95
SKU: FDPCK-MC.5-KNCKL-FMLE-CBORE

PRICE BREAKS - The more you buy, the more you save.
(please allow additional time for large quantities)
Quantity
10+
Price
$11.65

The 0.5" Female Clevis with Counterbore is designed for assemblies where tubes must be securely fixed without requiring rotation during installation. Instead of turning the tube to align or torque a joint, the clevis allows a socket-head cap screw to pass through its central counterbore and fasten into any compatible threaded mount, keeping the tube stationary while achieving a strong mechanical connection.

When used with a DragonPlate Threaded End Connector—such as the 0.5" Threaded End Connector—the clevis can be freely rotated to any angle before final tightening, independent of any bonded tube orientation. This makes it especially useful in applications that demand precise angular adjustments after bonding or assembly.

It’s also compatible with other DragonPlate modular elements, like the 0.5" Modular Cube, enabling the construction of custom-fitted joints in lightweight structures.

Key Benefits:

  • No need to rotate tubes during joint assembly
  • Central counterbore supports clean, through-bolt attachment
  • Clevis angle is independently adjustable from bonded tube orientation
  • Compatible with DragonPlate threaded modular connectors
  • Ideal for robotics, UAV frames, camera rigs, and high-precision structures

Example Shown:

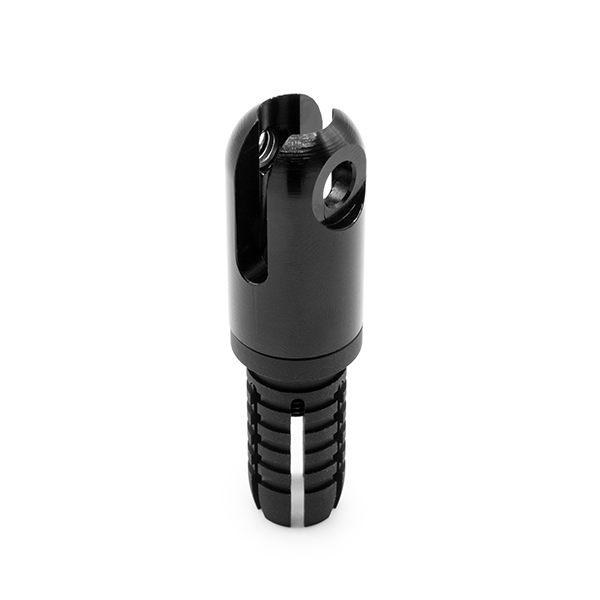

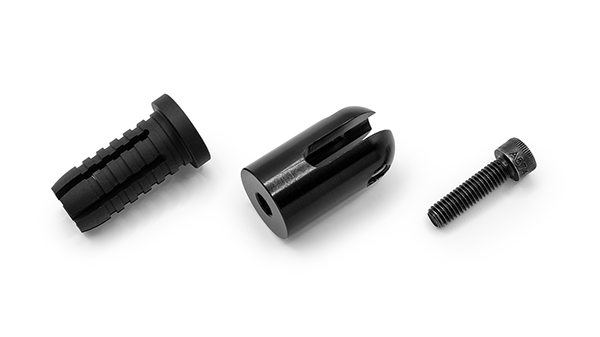

Below, see the clevis mounted to a threaded end connector, demonstrating independent angular positioning and flush mounting.

0.5" Female Clevis Example



0.5" Female Clevis Example

 Versatile and Easy to Integrate

Whether you're building complex modular structures or refining the articulation of a single joint, the 0.5" Female Clevis with Counterbore offers precision, flexibility, and strength. Its compatibility with DragonPlate’s modular ecosystem makes it an ideal choice for engineers, builders, and designers seeking reliable, non-rotational tube connections with adjustable alignment.

The 0.5" Female Clevis with Counterbore is designed for assemblies where tubes must be securely fixed without requiring rotation during installation. Instead of turning the tube to align or torque a joint, the clevis allows a socket-head cap screw to pass through its central counterbore and fasten into any compatible threaded mount, keeping the tube stationary while achieving a strong mechanical connection.

When used with a DragonPlate Threaded End Connector—such as the 0.5" Threaded End Connector—the clevis can be freely rotated to any angle before final tightening, independent of any bonded tube orientation. This makes it especially useful in applications that demand precise angular adjustments after bonding or assembly.

It’s also compatible with other DragonPlate modular elements, like the 0.5" Modular Cube, enabling the construction of custom-fitted joints in lightweight structures.

Key Benefits:

  • No need to rotate tubes during joint assembly
  • Central counterbore supports clean, through-bolt attachment
  • Clevis angle is independently adjustable from bonded tube orientation
  • Compatible with DragonPlate threaded modular connectors
  • Ideal for robotics, UAV frames, camera rigs, and high-precision structures

Example Shown:
Below, see the clevis mounted to a threaded end connector, demonstrating independent angular positioning and flush mounting.

0.5" Female Clevis Example



0.5" Female Clevis Example

 Versatile and Easy to Integrate

Whether you're building complex modular structures or refining the articulation of a single joint, the 0.5" Female Clevis with Counterbore offers precision, flexibility, and strength. Its compatibility with DragonPlate’s modular ecosystem makes it an ideal choice for engineers, builders, and designers seeking reliable, non-rotational tube connections with adjustable alignment.

Products specifications
Thread Size 10-32
Material Anodized Aluminum
Approx. Weight

0.429 oz

Compatible Tube Size 0.5" ID Round
